有离型纸的通用单面胶带
SMART BAND

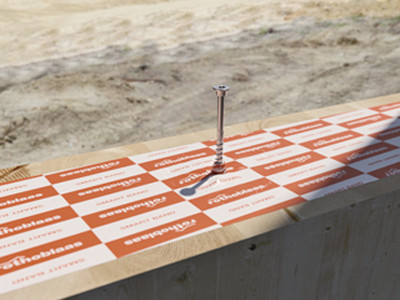

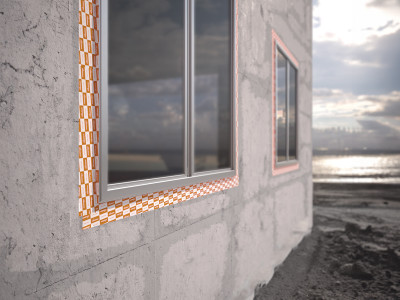

带离型纸的SMART BAND通用胶带满足所有要求,可归类为密封外部门窗的胶带,确保即使在滞水的情况下也能达到最大的安全性。用途极其广泛。
视频

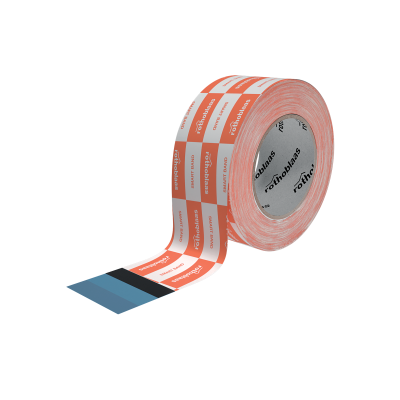

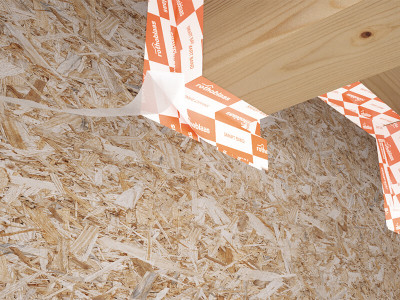

SMART BAND,有易撕离型纸的高度可变形的通用胶带
SMART BAND通用单面胶带具有独特的离型纸,经过特殊处理,可在任何位置进行分离,无需预切割,从而适应任何安装要求。由于其高可塑性,支撑的特殊成分使胶带特别耐撕裂和耐应力。由于易于拆分的离型纸,意味着可以存储少量尺寸,以满足任何施工要求。
文件
技术数据表
|
---|
SMART BAND
CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
---|---|---|---|---|---|

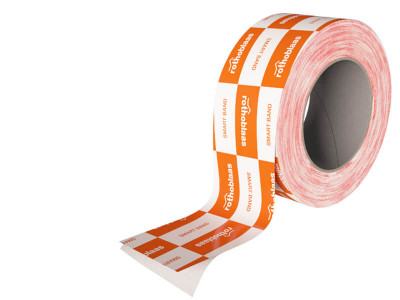

SMART60 | 60 | 25 | 2.4 | 82 | 10 |

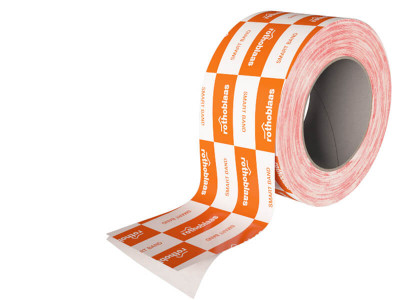

SMART75 | 75 | 25 | 3 | 82 | 8 |

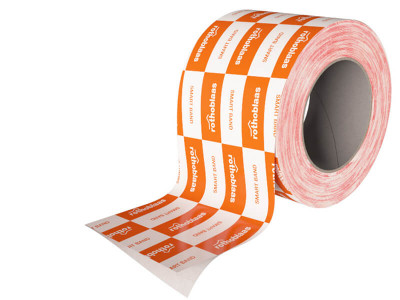

SMART100 | 100 | 25 | 3.9 | 82 | 6 |

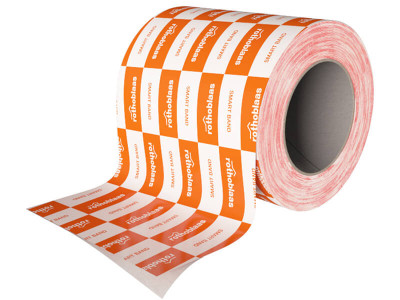

SMART150 | 150 | 25 | 5.9 | 82 | 4 |
SMART225 | 225 | 25 | 8.9 | 82 | 2 |
SMART300 | 300 | 25 | 11.8 | 82 | 2 |
技术数据
属性 | 标准 | 数值经过测试 | USC 转换 |
---|---|---|---|
Thickness | - | 0,24 mm | 9 mil |
Tensile strength | ASTM D1000 | 30 N/10mm | 17.13 lbf/in |
Elongation at failure | ASTM D1000 | ≥ 400 % | - |
Resistance to heavy rain | - | compliant | - |
Application temperature | - | -10 / 40 °C | 14 / 104 °F |
Resistance to temperature | - | -30 / 80 °C | -22 / 176 °F |
Storage temperature | - | 5 / 30 °C | 41 / 86 °F |
Adhesion strength on steel at 90° | AFERA 5001 | ≥ 12 N/25mm | ≥ 2.74 lbf/in |
Resistance to heavy rain | TU Berlin | npd | - |
Solvents | - | no | - |
Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 7 N/10mm | 4 lbf/in |
Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 3,5 N/10mm | 2 lbf/in |
Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 26 N/50mm | 3 lbf/in |
Shear adhesion strength of the joint on membrane in PP after 24 hours (1) | EN 12317-2 | 55 N/50mm | 6.3 lbf/in |
Watertightness | - | compliant | - |
Exposure to weather | - | 12 month | - |
1.
成分
SUPPORT | PE special film |
---|---|
SUPPORT | UV-stabilised PE film |
GLUE | solvent-free UV-crosslinked acrylic |
RELEASE LINER | PP film with easy splitting |
