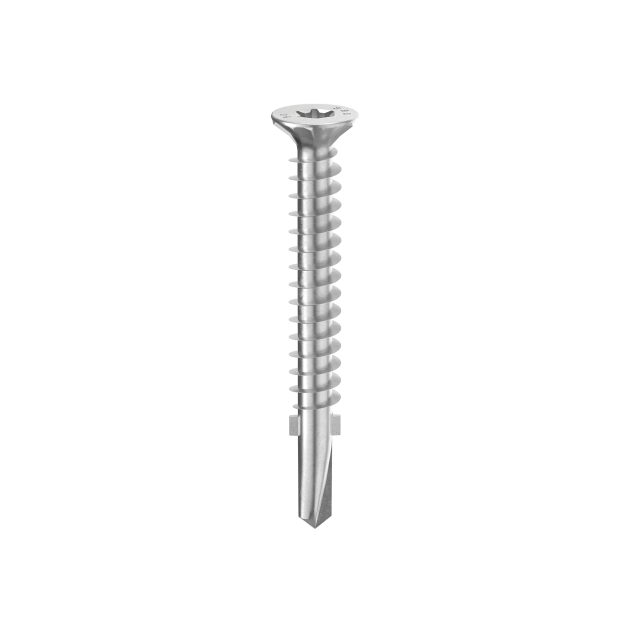

SBS

	self-perforating tip with protective fins
	countersunk with under-head ribs
	from 4,2 mm to 6,3 mm
	from 32 mm to 240 mm

CODE	info	d₁ [mm]	L [mm]	b [mm]	d₁ [in]	L [in]	b [in]	TX	pcs.
SBS4232	-	4.2	32	18	0.17	1 1/4''	11/16''	TX20	500
SBS4238	-	4.2	38	19	0.17	1 1/2''	3/4''	TX20	500
SBS4838	-	4.8	38	23	0.19	1 1/2''	7/8''	TX25	200
SBS4845	-	4.8	45	25	0.19	1 3/4''	1''	TX25	200
SBS5545	-	5.5	45	29	0.22	1 3/4''	1 1/8''	TX30	200
SBS5550	-	5.5	50	29	0.22	1 15/16''	1 1/8''	TX30	200
SBS6360	-	6.3	60	35	0.25	2 3/8''	1 3/8''	TX30	100
SBS6370	-	6.3	70	45	0.25	2 3/4''	1 3/4''	TX30	100
SBS6385	-	6.3	85	55	0.25	3 3/8''	2 3/16''	TX30	100
SBS63100	-	6.3	100	55	0.25	4''	2 3/16''	TX30	100
