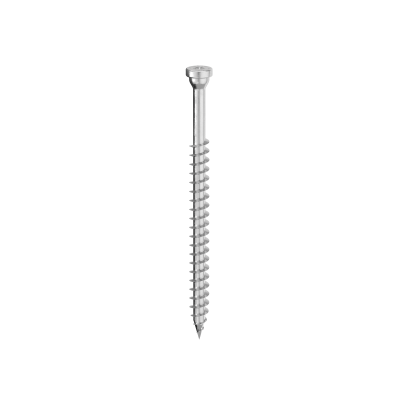

HBS PLATE A4

New COMING SOON

技术数据表	Choose a Language
技术数据表 USA	Choose a Language

CODE	info	d₁ [mm]	L [mm]	b [mm]	d₁ [in]	L [in]	b [in]	TX	pcs.
HBSPL860A4	-	8	60	52	0.32	2 3/8''	2 1/16''	TX40	100
HBSPL880A4	-	8	80	55	0.32	3 1/8''	2 3/16''	TX40	100
HBSPL8100A4	-	8	100	75	0.32	4''	2 15/16''	TX40	100
HBSPL8120A4	-	8	120	95	0.32	4 3/4''	3 3/4''	TX40	100
HBSPL8140A4	-	8	140	110	0.32	5 1/2''	4 3/8''	TX40	100
HBSPL8160A4	-	8	160	130	0.32	6 1/4''	5 1/8''	TX40	100
HBSPL1080A4	-	10	80	60	0.4	3 1/8''	2 3/8''	TX40	50
HBSPL10100A4	-	10	100	75	0.4	4''	2 15/16''	TX40	50
HBSPL10120A4	-	10	120	95	0.4	4 3/4''	3 3/4''	TX40	50
HBSPL10140A4	-	10	140	110	0.4	5 1/2''	4 3/8''	TX40	50
HBSPL10160A4	-	10	160	130	0.4	6 1/4''	5 1/8''	TX40	50
HBSPL10180A4	-	10	180	150	0.4	7 1/8''	6''	TX40	50
HBSPL12100A4	-	12	100	75	0.48	4''	2 15/16''	TX50	25
HBSPL12120A4	-	12	120	90	0.48	4 3/4''	3 1/2''	TX50	25
HBSPL12140A4	-	12	140	110	0.48	5 1/2''	4 3/8''	TX50	25
HBSPL12160A4	-	12	160	120	0.48	6 1/4''	4 3/4''	TX50	25
HBSPL12180A4	-	12	180	140	0.48	7 1/8''	5 1/2''	TX50	25
HBSPL12200A4	-	12	200	160	0.48	8''	6 1/4''	TX50	25
