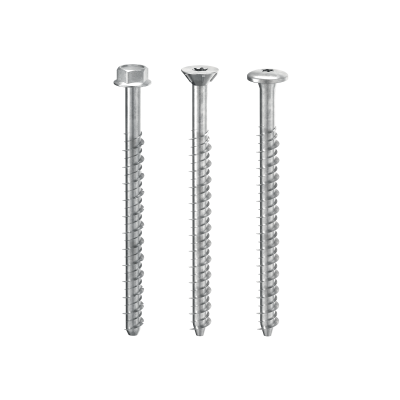

SKR | SKS | SKP
文件
技术数据表
|
|
|---|---|
技术数据表 USA
|
|
ETA Certificate
|
|
Item specification
|
|
File CAD
|
SKR
| CODE | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
SW | pcs. |
|---|---|---|---|---|---|---|
| SKR8100 | 8 | 100 | 0.32 | 4'' | SW10 | 50 |
| SKR1080 | 10 | 80 | 0.4 | 3 1/8'' | SW13 | 50 |
| SKR10100 | 10 | 100 | 0.4 | 4'' | SW13 | 25 |
| SKR10120 | 10 | 120 | 0.4 | 4 3/4'' | SW13 | 25 |
| SKR1290 | 12 | 90 | 0.48 | 3 1/2'' | SW15 | 25 |
| SKR12110 | 12 | 110 | 0.48 | 4 3/8'' | SW15 | 25 |
| SKR12150 | 12 | 150 | 0.48 | 6'' | SW15 | 25 |
| SKR12210 | 12 | 210 | 0.48 | 8 1/4'' | SW15 | 20 |
| SKR12250 | 12 | 250 | 0.48 | 10'' | SW15 | 15 |
| SKR12290 | 12 | 290 | 0.48 | 11 7/16'' | SW15 | 15 |
| SKR16130 | 16 | 130 | 0.63 | 5 1/8'' | SW21 | 10 |
SKS
| CODE | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|
| SKS8100 | 8 | 100 | 0.32 | 4'' | TX30 | 50 |
| SKS10100 | 10 | 100 | 0.4 | 4'' | TX40 | 50 |
