混合柱支座

TYP F-FD-M

适用于柱子、栅栏或围栏的全套解决方案，能够满足柱子尺寸和几何形状（矩形、方形和圆形）方面的所有需求。所有版本均适用于 1、2 和 3 级应用等级，部分采用热浸镀锌，部分采用 A2 不锈钢 | AISI304 或棕色或石墨黑涂漆。

有些版本可以固定在混凝土上，有些版本配备了有可埋入混凝土浇筑的钢筋，还有些版本仍然可以打入地下。

所有产品均适用于木工和业余爱好者的需求。

TYP F-FD-M
文件
代号和尺寸
Technical Data
Composition

文件

技术数据表	Choose a Language

联系方式样本下载

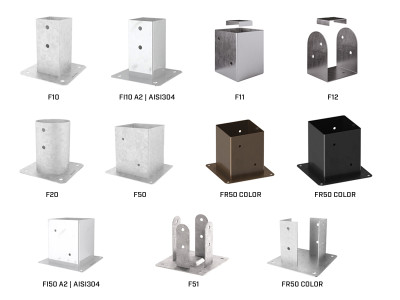

F10

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F1070	71	71	150	2	1
F1080	81	81	150	2	1
F1090	91	91	150	2	1

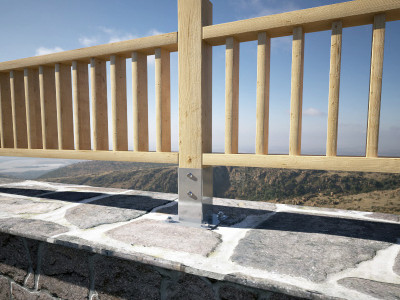

FI10 A2 | AISI304

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FI1070	71	71	150	2	1
FI1090	91	91	150	2	1

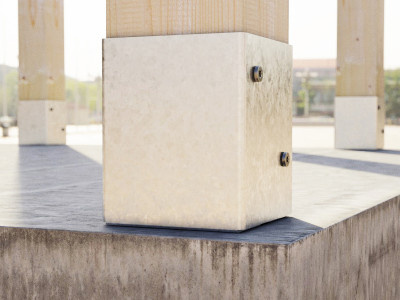

F11

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F1190	91	91	150	2.5	1
F11100	101	101	150	2.5	1
F11120	121	121	150	2.5	1
F11140	141	141	200	3	1
F11160	161	161	200	3	1

F12

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F1270	72	60	100	2.5	1
F1280	82	60	100	2.5	1
F1290	92	70	120	2.5	1
F12100	102	80	120	2.5	1
F12120	122	100	140	2.5	1
F12140	142	120	160	3	1
F12160	162	140	180	3	1

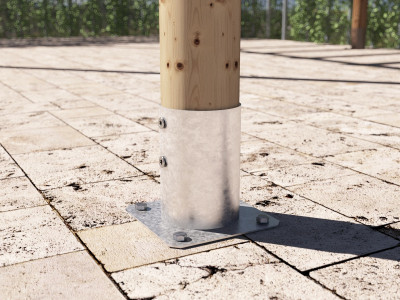

F20

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
F2080	Ø81	150	2	1
F20100	Ø101	150	2	1
F20120	Ø121	150	2	1
F20140	Ø141	150	2	1

F50

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F50100	101	101	150	2.5	1
F50120	121	121	150	2.5	1
F50140	141	141	150	2.5	1
F50160	161	161	200	2.5	1
F50180	181	181	200	2.5	1
F50200	201	201	200	2.5	1

FR50 COLOR

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FR50100	101	101	150	2.5	1
FR50120	121	121	150	2.5	1

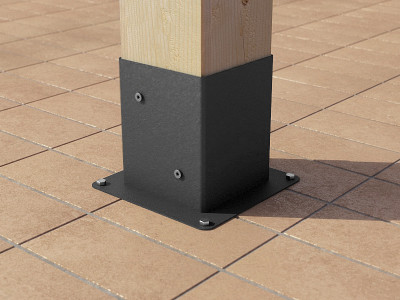

FM50 COLOR

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FM50100	101	101	150	2.5	1
FM50120	121	121	150	2.5	1
FM50160	161	161	200	2.5	1
FM50200	201	201	200	2.5	1

FI50 A2 | AISI304

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FI50100	101	101	150	2.5	1
FI50120	121	121	150	2.5	1
FI50140	141	141	150	2.5	1
FI50160	161	161	200	2.5	1
FI50200	201	201	200	2.5	1

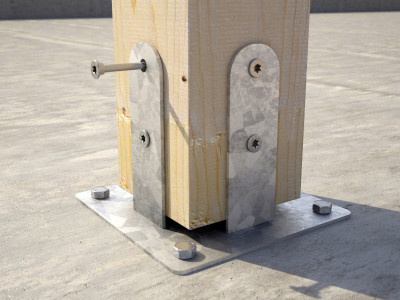

F51

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F51120	121	121	150	3	1
F51140	141	141	200	3	1
F51160	161	161	200	4	1
F51200	201	201	225	4	1

F69

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F69100	101	101	150	2.5	1
F69120	121	121	150	2.5	1
F69160	161	161	200	3	1
F69200	201	201	220	3	1

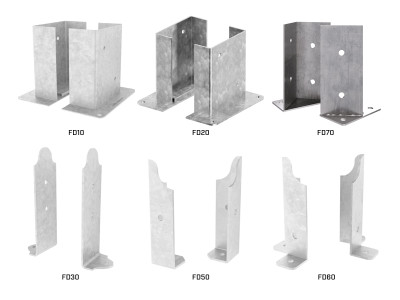

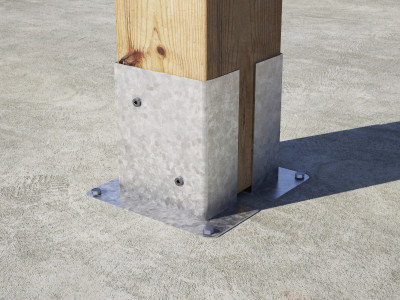

FD10

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FD10120	121	56	200	2.5	1
FD10140	141	66	200	2.5	1
FD10160	161	76	200	2.5	1
FD10180	181	86	200	2.5	1
FD10200	201	96	200	2.5	1

FD20

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FD20120	121	38	200	4	1
FD20140	141	46	200	4	1
FD20160	161	54	200	4	1
FD20200	201	66	200	4	1

FD30

CODE	B [mm]	H [mm]	s [mm]	pcs.
FD3060	60	180	4	1
FD3080	80	240	4	1

FD50

CODE	B [mm]	H [mm]	s [mm]	pcs.
FD5050	46	185	4	1
FD5080	76	220	4	1

FD60

CODE	B [mm]	H [mm]	s [mm]	pcs.
FD6050	46	185	4	1
FD6080	76	220	4	1

FD70

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FD7080	81	81	180	3	1
FD70100	101	101	220	3	1

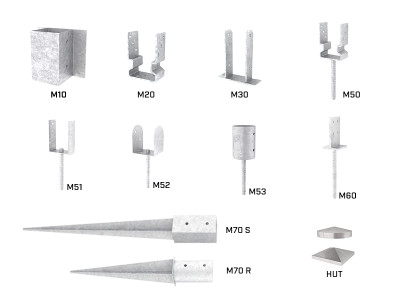

M10

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M1070	71	71	150	2	1
M1090	91	91	150	2	1

M20

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M2070	71	60	150	5	1
M2090	91	60	150	5	1
M20100	101	60	150	5	1
M20120	121	60	150	5	1

M30

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M3070	71	50	200	5	1
M3080	81	50	200	5	1
M3090	91	50	200	5	1
M30100	101	50	200	5	1
M30120	121	50	200	5	1

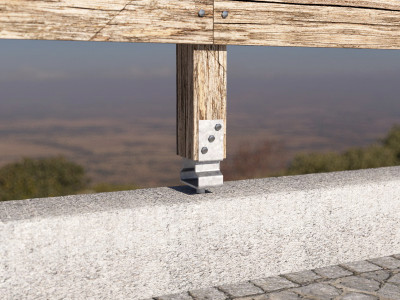

M50

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M5070	71	60	150	5	1
M5090	91	60	150	5	1
M50100	101	60	150	5	1
M50120	121	60	150	5	1

M51

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
M51100	Ø101	150	3	1
M51120	Ø121	150	3	1

M52

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M5290	91	70	120	2.5	1
M52100	101	80	120	2.5	1
M52120	121	100	140	2.5	1

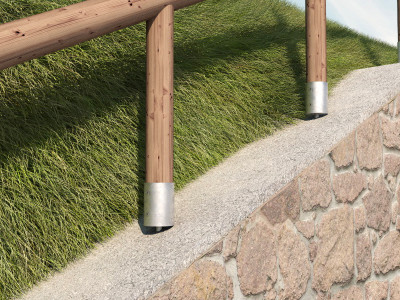

M53

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
M5380	Ø81	150	3	1
M53100	Ø101	150	3	1
M53120	Ø121	150	3	1

M60

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M6080	80	80	130	8	1

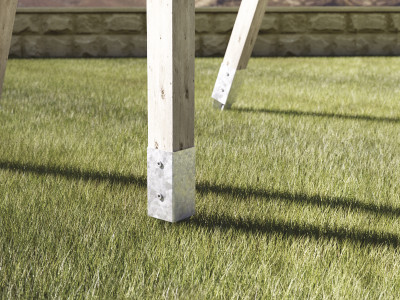

M70 S

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M70S70	71	71	150	2	1
M70S90	91	91	150	2	1
M70S100	101	101	150	2	1
M70S120	121	121	150	2	1

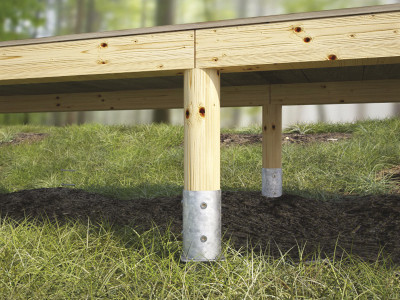

M70 R

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
M70R80	Ø81	150	2	1
M70R100	Ø101	150	2	1
M70R120	Ø121	150	2	1

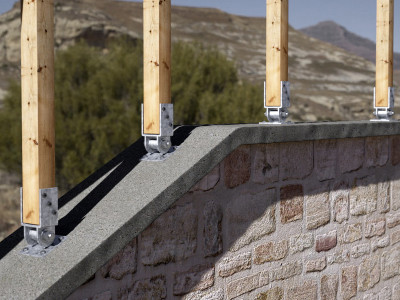

S40

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
S4070	71	60	100	5	1
S4090	91	60	100	5	1

LIFT

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
LIFT20	60	60	20	3	1
