高耐火硅酮密封胶
FIRE SEALING SILICONE
New
FIRE SEALING SILICONE是一种高度耐火的硅酮密封胶（B-s1，d0级），非常适合在防火规范要求的情况下密封防火墙和门的线性接缝。
FIRE SEALING SILICONE，具有B-s1、d0级高耐火性的硅酮密封胶

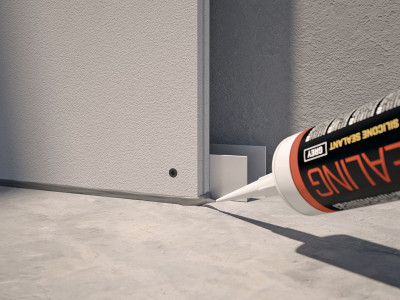

FIRE SEALING SILICONE是一种经过测试的硅酮密封剂，旨在提供最大限度的保护，防止火焰、烟雾或气体通过。在防火规范要求的情况下密封防火墙和门的线性接缝的理想选择。根据EN 15651-1，它被分类为室内和室外非结构用途，也可用于立面和气候寒冷的地区。高粘附力和高抗紫外线能力。
文件
技术数据表
|
|
|---|---|
Test Report
|
|
Fire test report
|

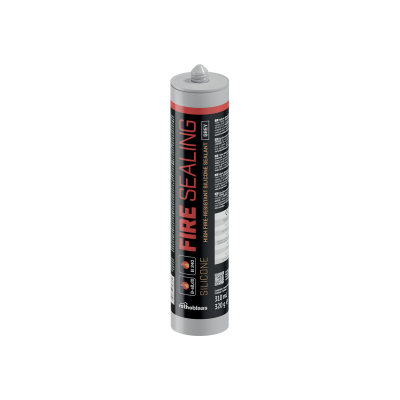

FIRE SEALING SILICONE
| CODE | content
[ml]
|
contenuto
[US fl oz]
|
colour | version | pcs. |
|---|---|---|---|---|---|
| FIRESILGRE310 | 310 | 10.48 | GREY | PLASTIC CARTRIDGE | 24 |
Technical Data
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Composition | - | silicone | - |
| Classification (1) | EN 15651-1 | F-EXT/INT-CC | - |
| Density | ISO 1183-1 | 1,482 g/mL | 237.65 oz/gal |
| Yield for 10x10 mm joint | - | 3,1 m | 10.17 ft |
| Surface cross-linking time 23 °C (2) | - | 80 minutes | - |
| Hardening speed 20 °C / 50 %RH | - | ca. 2 mm/24h | - |
| Shore A hardness | DIN 53505 | ca. 30 | - |
| Elongation at failure | DIN 53504 | 460 % | - |
| Tensile strength | DIN 53504 | 0,72 N/mm² | 104 lbf/in² |
| Compressive modulus 100% | DIN 53504 | 0,38 N/mm² | 55 lbf/in² |
| Reaction to fire | EN 13501-1 | class B-s1,d0 | - |
| Fire resistance (3) | EN 13501-2 | EI240 | - |
| Acid resistance | - | excellent | - |
| Bases resistance | - | excellent | - |
| VOC content | - | 4.3 % - 64 g/L | - |
| French VOC classification | ISO 16000 | A+ | - |
| Emicode | procedura di prova GEV | EC1 | - |
| Storage temperature (4) | - | 5 / 35 °C | 41 / 95 °F |
1.
2. The data expressed may vary depending on the thickness of the product applied and the specific installation conditions: temperature, humidity, ventilation, absorbency of the substrate.
3. Valid value for tested configurations
4.
