反射型高透汽膜

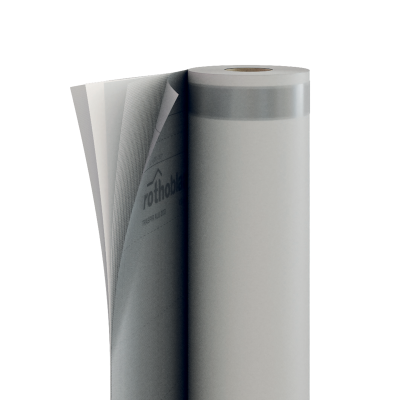

TRASPIR ALU 200

高度透汽反射TRASPIR ALU 200膜非常适合安装在屋顶内外侧。它优化了结构的风密性,防止夏季热空气和冬季冷空气进入。由于其单位面积的高质量,因此具有良好的力学性能,配备了双集成胶带。

TRASPIR ALU 200,一种反射热量的高度透汽膜

室外侧的反射膜通过在炎热季节向外反射热量和阻止进入的热量提供优势。单位面积的高质量确保了耐磨性和可行走性。集成双胶带简化了安装并确保专业密封。

文件

技术数据表
施工步骤

TRASPIR ALU 200

CODE description tape H
[m]
L
[m]
A
[m²]
H
[ft]
L
[ft]
A
[sft]
pcs./pallet
TTTALU200 TRASPIR ALU 200 TT TT 1.5 50 75 4' 11'' 164 807 25

技术数据
EN 13859-1
national-classifications AT Önorm B4119 UD Typ I US
national-classifications CH SIA 232 UD (g)
national-classifications DE ZVDH USB-A UDB-A
national-classifications FR DTU 31.2 E1 Sd1 TR2
national-classifications IT UNI 11470 A/R2
national-classifications AUS AS/NZS 4200.1 Class 4
national-classifications USA IRC vp

属性 标准 数值经过测试 USC 转换
Mass per unit area EN 1849-2 200 g/m² 0.66 oz/ft²
Thickness EN 1849-2 0,8 mm 31 mil
Water vapour transmission (Sd) EN 1931 0,045 m 77.7 US perm
Tensile strength MD/CD EN 12311-1 350 / 225 N/50mm 40 / 26 lbf/in
Elongation MD/CD EN 12311-1 5 / 4 % -
Resistance to nail tearing MD/CD EN 12310-1 200 / 200 N 45 / 45 lbf
Watertightness EN 1928 class W1 -
Resistance to temperature - -40 / 80 °C -40 / 176 °F
Reaction to fire EN 13501-1 class E -
Resistance to penetration of air EN 12114 < 0,02 m³/(m²·h·50Pa) < 0.001 cfm/ft² at 50Pa
Thermal conductivity (λ) - 0,3 W/(m·K) 0.17 BTU/(h·ft·°F)
Specific heat - 1800 J/(kg·K) -
Density - ca. 250 kg/m³ -
Water vapour resistance factor (μ) - ca. 60 -
UV stability (1) - 336h (3 months) -
Watertightness after artificial ageing EN 1297 / EN 1928 class W1 -
Dopo invecchiamento artificiale - resistenza a trazione MD/CD EN 1297 / EN 12311-1 330 / 175 N/50mm 38 / 20 lb/in
Dopo invecchiamento artificiale - allungamento EN 1297 / EN 12311-1 4 / 4 % -
Flexibility at low temperatures EN 1109 -30 °C -22 °F
Equivalent thermal resistance with 50mm air gap (ε 0,025-0,88) ISO 6946 0,821 / 0,731 (m²·K)/W 4.66 / 4.15 (h·ft²·°F)/BTU
VOC - not relevant -
1.

成分

COATING perforated aluminium film
REINFORCING LAYER PL reinforcing grid
TOP LAYER non-woven PP fabric
middle layer PL breathable film
BOTTOM LAYER non-woven PP fabric
