高透汽膜

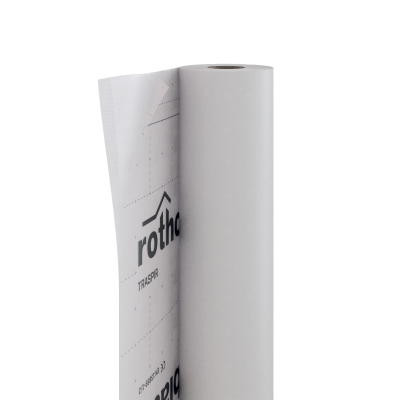

TRASPIR 115 FR
该产品具有改良过的防火性能，并根据 (NZ) AS 1530.2-1993 法令进行了测试。这种新型透气膜专为澳大利亚和新西兰市场打造，符合“易燃指数 1”的标准。
该产品只专门用于澳大利亚和新西兰市场。
文件
技术数据表
|
|---|
Technical Data
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 115 g/m² | 0.38 oz/ft² |
| Thickness | EN 1849-2 | 0,3 mm | 12 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,05 m | 69.93 PERM |
| Tensile strength MD/CD | EN 12311-1 | 245 / 125 N/50mm | 28 / 14 lb/in |
| Elongation MD/CD | EN 12311-1 | 52 / 57 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 170 / 190 N | 38 / 43 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | 0 m³/(m²·h·50Pa) | 0 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 2.08 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 380 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 160 | - |
| VOC content | - | 0 % | - |
| UV stability | EN 13859-2 | 2 months | - |
| Exposure to weather | - | 2 weeks | - |
| Water column | ISO 811 | 250 cm | 98.4252 in |
| After artificial ageing - watertightness | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - tensile strength MD/CD | EN 1297 / EN 12311-1 | 235 / 115 N/50mm | 27 / 13 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 40 / 43 % | - |
| Flexibility at low temperatures | EN 1109 | -40 / °C | -40 / °F |
| Classificazione in funzione della permeabilità al vapore | AS 4200.1 | class 4 (vapour permeable) | - |
| Duty classification | AS 4200.1 | Light wall | - |
| Bursting force | AS 2001.2.19 | 299 N | - |
| Resistenza a lacerazione al bordo MD/CD | AS 4200.1 | 235 / 174 N | - |
| Tensile strength MD/CD | AS 1301.448s | 4,8 / 3,5 kN/m | - |
Composition
| TOP LAYER | non-woven PP fabric |
|---|---|
| middle layer | PP breathable film |
| BOTTOM LAYER | non-woven PP fabric |
