高粘性钉眼密封胶带
NAIL PLASTER | GEMINI
NAIL PLASTER和GEMINI钉眼密封剂胶带确保在固定通风板条的螺钉穿过的位置，实现完全密封。

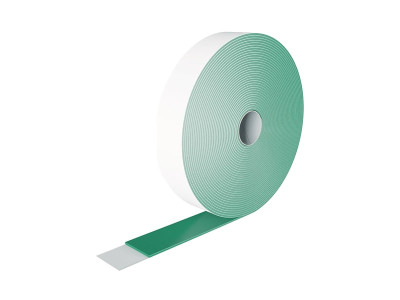

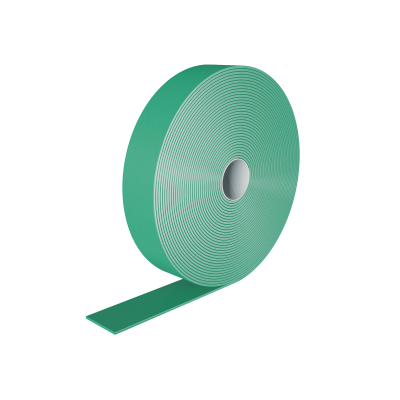

NAIL PLASTER and GEMINI，钉眼密封胶带
两种高附着力钉眼密封胶带的封闭分子聚乙烯结构确保了紧固系统形成的孔的不透水性。它们有5毫米厚，70毫米宽和双面胶版本，实现更安全的密封。

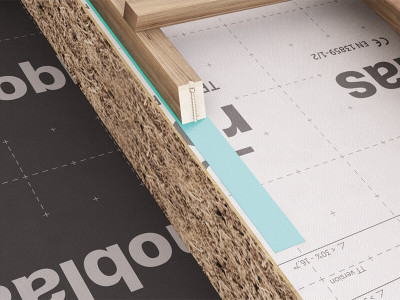

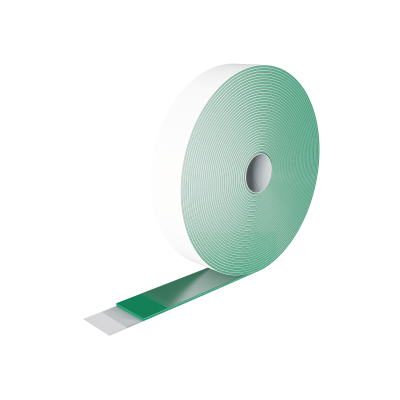

GEMINI版本提供双面粘附，并保证膜和挂瓦条之间的连续粘附，避免在钻孔点积水。借助LIZARD开卷机，安装简单快捷，直接在通风板条上完成。
文件
技术数据表
|
|---|
NAIL PLASTER
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| NAILPLA350 | 50 | 3 | 30 | 2 | 118 | 98 | 10 |
| NAILPLA370 | 70 | 3 | 30 | 2.8 | 118 | 98 | 7 |
| NAILPLA550 | 50 | 5 | 10 | 2 | 197 | 33 | 6 |
NAIL PLASTER
| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
B
[in]
|
H
[in]
|
s
[mil]
|
pcs. |
|---|---|---|---|---|---|---|---|
| NAILPLA35050 | 50 | 50 | 3 | 2 | 2 | 118 | 6 |
GEMINI
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| GEMINI60 | 60 | 3 | 30 | 2.4 | 118 | 98 | 8 |
| GEMINI80 | 80 | 3 | 30 | 3.1 | 118 | 98 | 6 |
技术数据 NAIL PLASTER
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Tensile strength | EN 1939 | material failure | - |
| Solvents | - | no | - |
| Resistance to temperature | - | -30 / 80 °C | -22 / 176 °F |
| Application temperature | - | ≥ 5 °C | ≥ 41 °F |
| Storage temperature (1) | - | 5 / 25 °C | 41 / 77 °F |
1. Store the product in a cool, dry place for no more than 12 months.
成分 NAIL PLASTER
| SUPPORT | PE foam |
|---|---|
| GLUE | synthetic rubber |
成分 GEMINI
| GLUE | synthetic rubber |
|---|---|
| SUPPORT | PE foam |
| GLUE | synthetic rubber |
| RELEASE LINER | silicone coated paper |
