有离型纸的通用单面胶带
SMART BAND

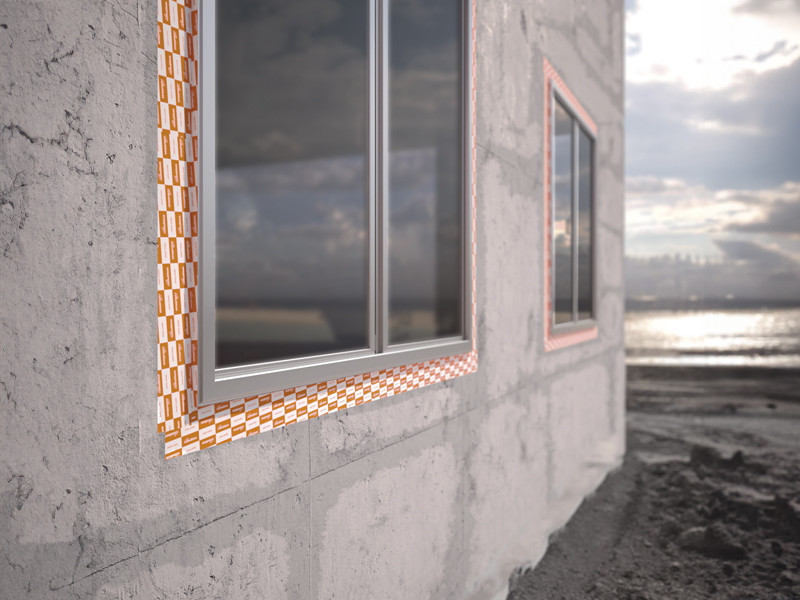

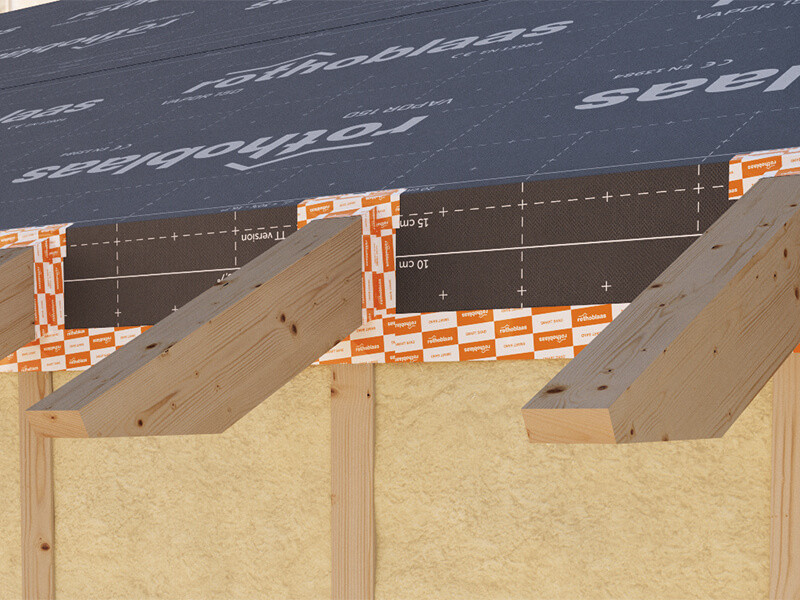

带离型纸的SMART BAND通用胶带满足所有要求，可归类为密封外部门窗的胶带，确保即使在滞水的情况下也能达到最大的安全性。用途极其广泛。
视频

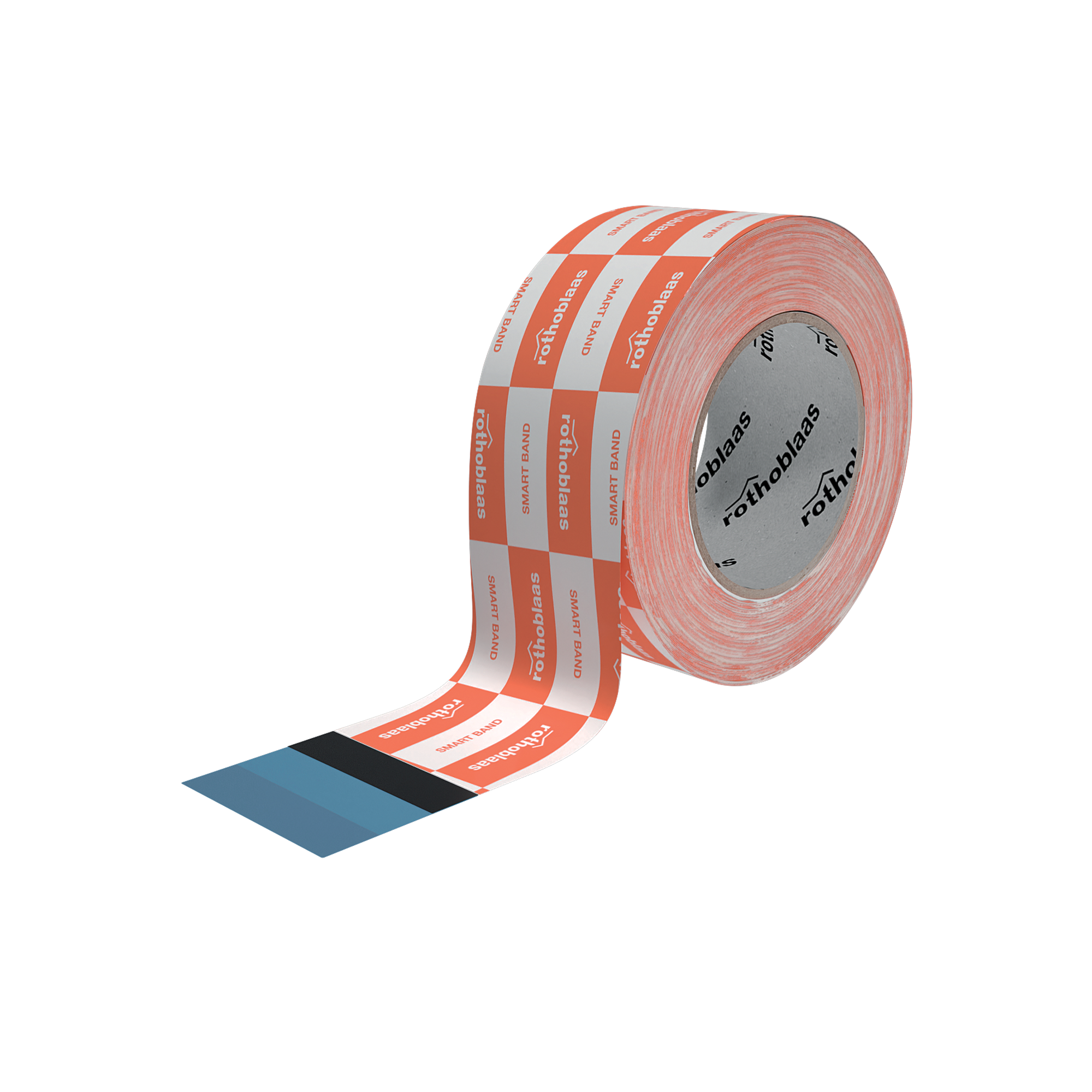

SMART BAND，有易撕离型纸的高度可变形的通用胶带
SMART BAND通用单面胶带具有独特的离型纸，经过特殊处理，可在任何位置进行分离，无需预切割，从而适应任何安装要求。由于其高可塑性，支撑的特殊成分使胶带特别耐撕裂和耐应力。由于易于拆分的离型纸，意味着可以存储少量尺寸，以满足任何施工要求。
文件
技术数据表
|
|---|
SMART BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|

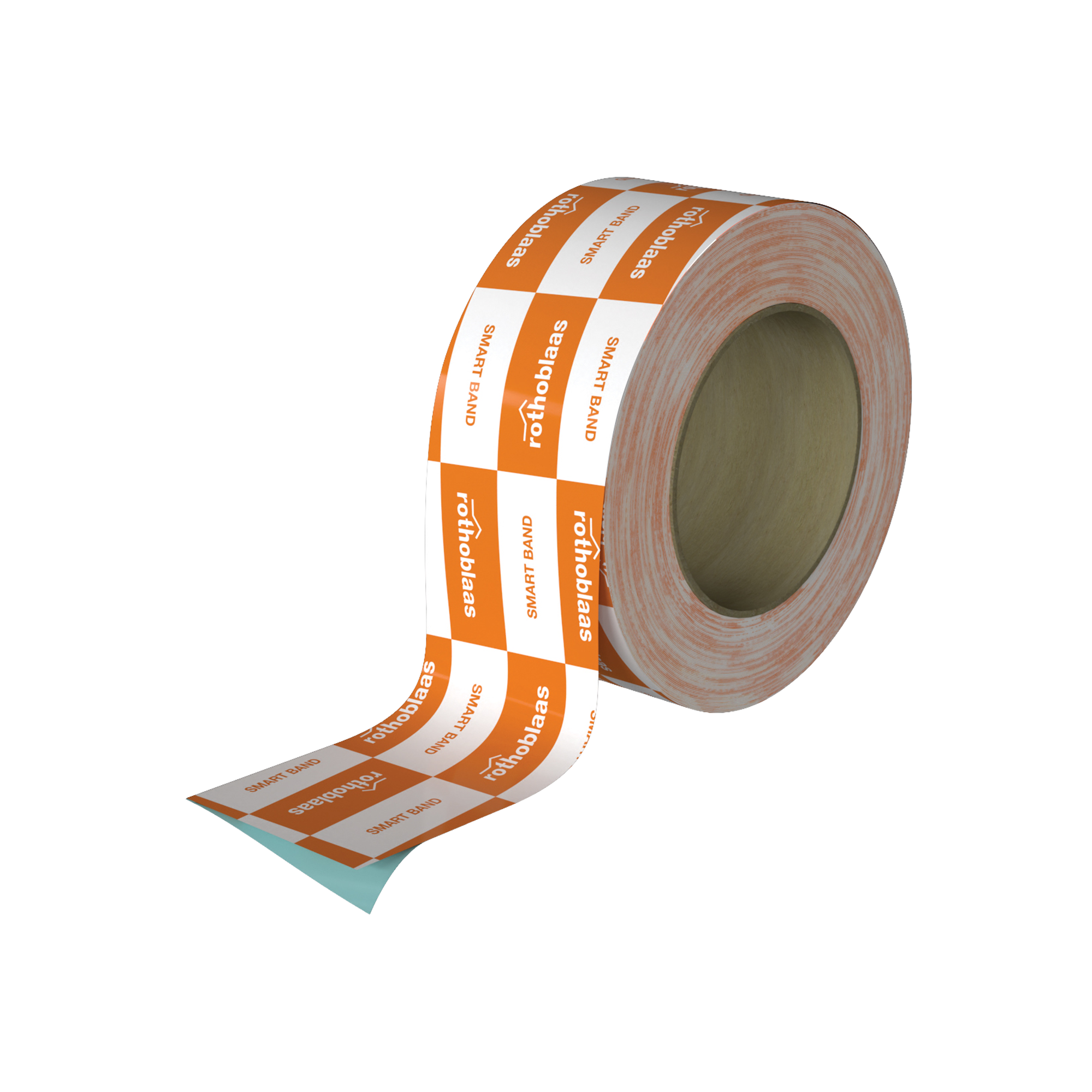

| SMART60 | 60 | 25 | 2.4 | 82 | 10 |

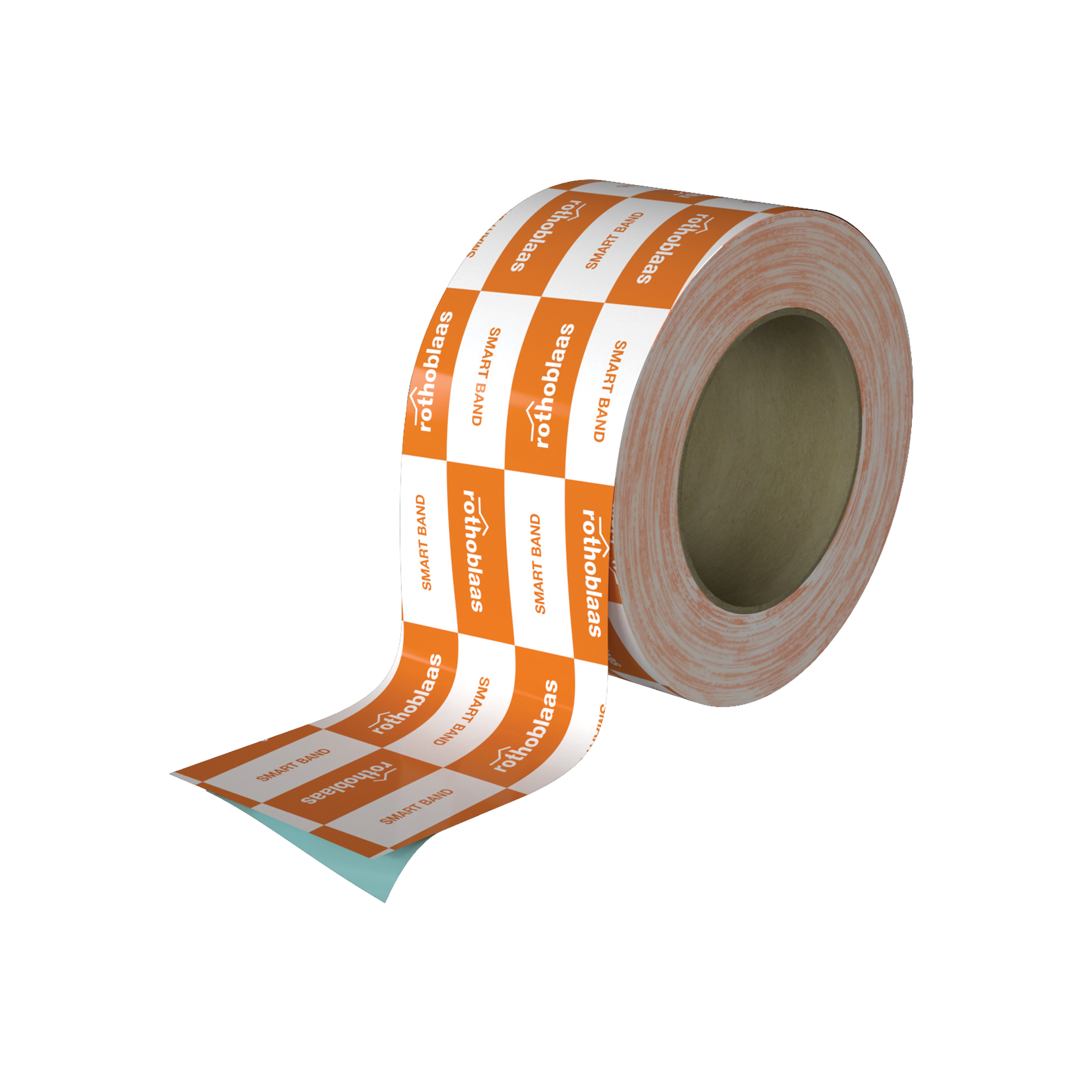

| SMART75 | 75 | 25 | 3 | 82 | 8 |

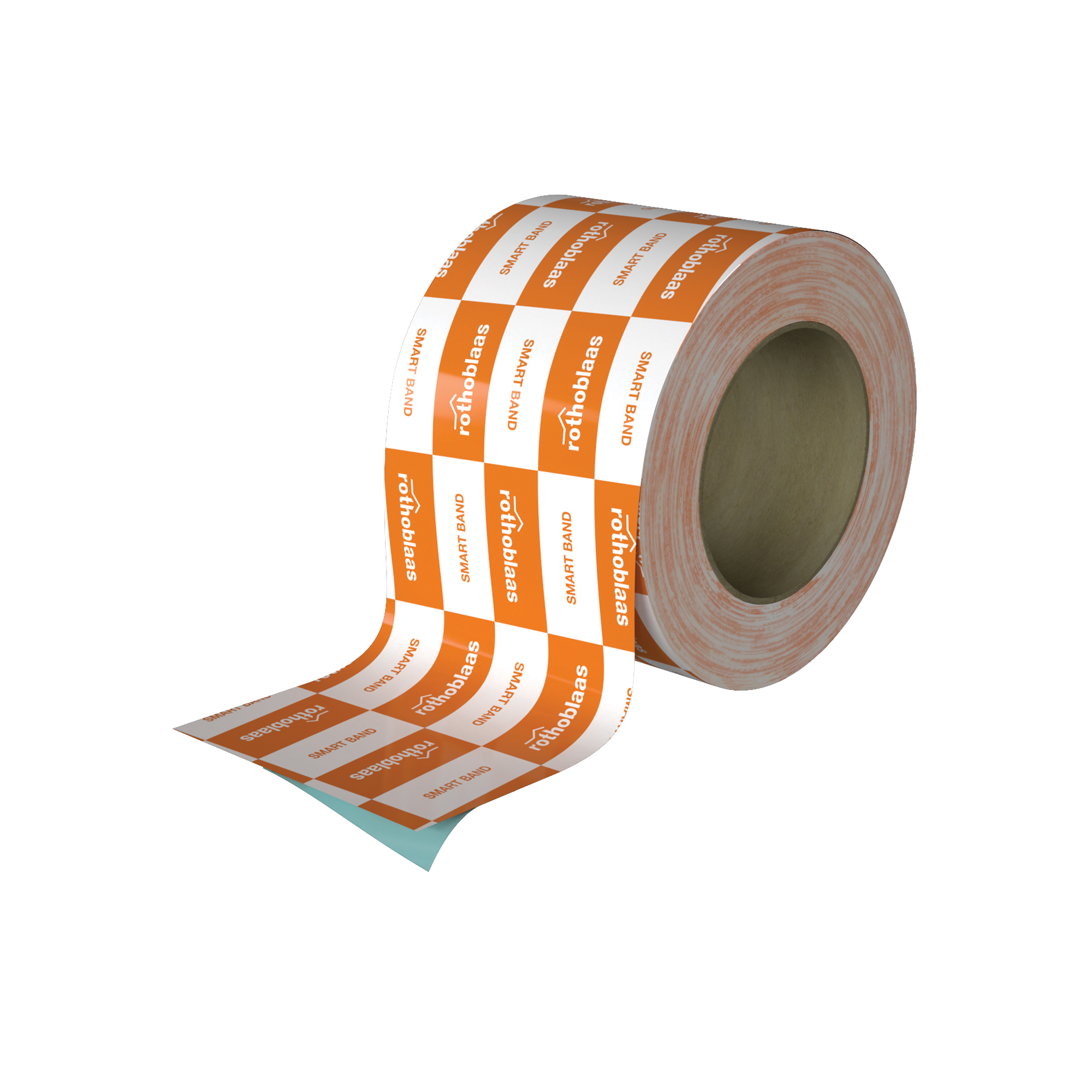

| SMART100 | 100 | 25 | 3.9 | 82 | 6 |

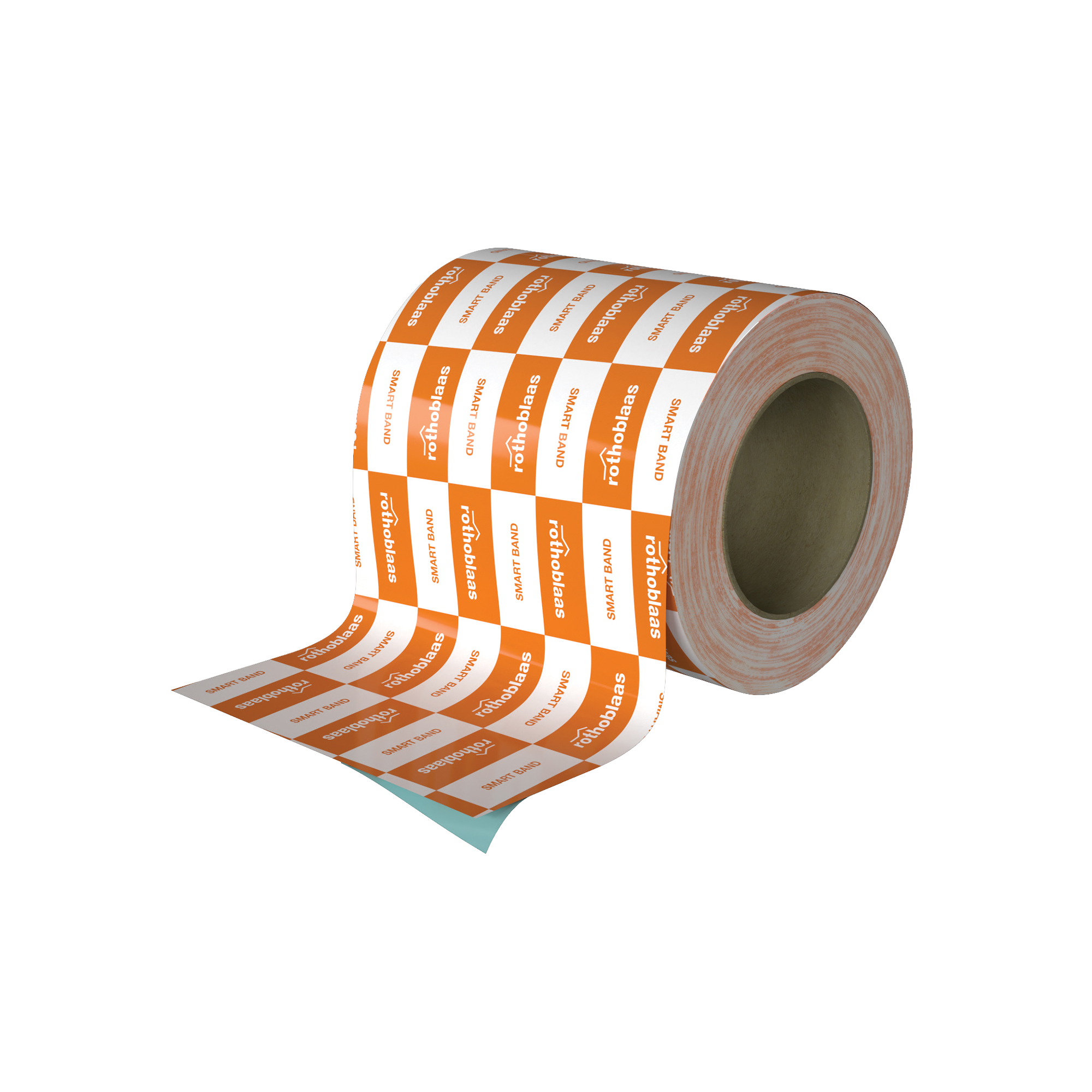

| SMART150 | 150 | 25 | 5.9 | 82 | 4 |
| SMART225 | 225 | 25 | 8.9 | 82 | 2 |
| SMART300 | 300 | 25 | 11.8 | 82 | 2 |
Technical Data
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Thickness | - | 0,24 mm | 9.4 mil |
| Adhesion to OSB | ASTM D3330 | ≥ 5 N/10mm | ≥ 2.86 lbf/in |
| Adhesion to steel | ASTM D3330 | ≥ 12 N/10mm | ≥ 6.85 lbf/in |
| Adhesion to vinyl | ASTM D3330 | ≥ 5 N/10mm | ≥ 2.86 lbf/in |
| Adhesion to plywood | ASTM D3330 | ≥ 5 N/10mm | ≥ 2.86 lbf/in |
| Adhesion to its cladding material | ASTM D3330 | ≥ 10 N/10mm | ≥ 5.71 lbf/in |
| Tensile strength | ASTM D1000 | 3000 N/mm | 17131.29 lbf/in |
| Elongation at failure | ASTM D1000 | ≥ 400 % | - |
| Water vapour transmission (Sd) | - | ca. 18 m | ca. 0.194 US perm |
| UV resistance | - | 12 months | - |
| Tightness in heavy rain | - | compliant | - |
| Application temperature | - | -10 / 40 °C | 14 / 104 °F |
| Thermal resistance | - | -30 / 80 °C | -22 / 176 °F |
| Storage temperature (1) | - | 5 / 30 °C | 41 / 86 °F |
1. Store the product in a dry, covered location.
Composition
| SUPPORT | PE special film |
|---|---|
| SUPPORT | UV-stabilised PE film |
| GLUE | solvent-free UV-crosslinked acrylic |
| RELEASE LINER | PP film with easy splitting |
