自膨胀密封胶带

EXPAND BAND

EXPAND BAND自膨胀胶带提供永久弹性膨胀,确保防水、防尘和防风。没有分离层的EVO版本,拥有特殊的薄膜,使它只要它是卷起来的状态就可以维持形状。

EXPAND BAND自膨胀胶带,高性能和高耐久性

EXPAND BAND自膨胀胶带由经过最严格有害排放测试的改性聚氨酯泡沫组成,确保即使在室内也能安全安装。EVO版本因为没有分离层,而且有一种特殊的薄膜,只要卷起来就可以保持形状而不会自我膨胀,减少了浪费和安装时间。自膨胀胶带配有塑料芯,以防止施工期间吸水和吸湿,而导致不必要的膨胀。

文件

技术数据表
Fire test report

EXPAND BAND

CODE B
[mm]
measures
[mm]
L
[m]
B
[in]
L
[ft]
pcs.
EXPAND1014 10 s: 1-4 13 0.4 43 48
EXPAND1514 15 s: 1-4 13 0.6 43 32
EXPAND1549 15 s: 4-9 8 0.6 26 32
EXPAND15615 15 s: 6-15 6 0.6 20 32
EXPAND20920 20 s: 9-20 4 0.8 13 24
EXPAND40615 40 s: 6-15 8 1.6 26 12
EXPAND60615 60 s: 6-15 8 2.4 26 8
Bs

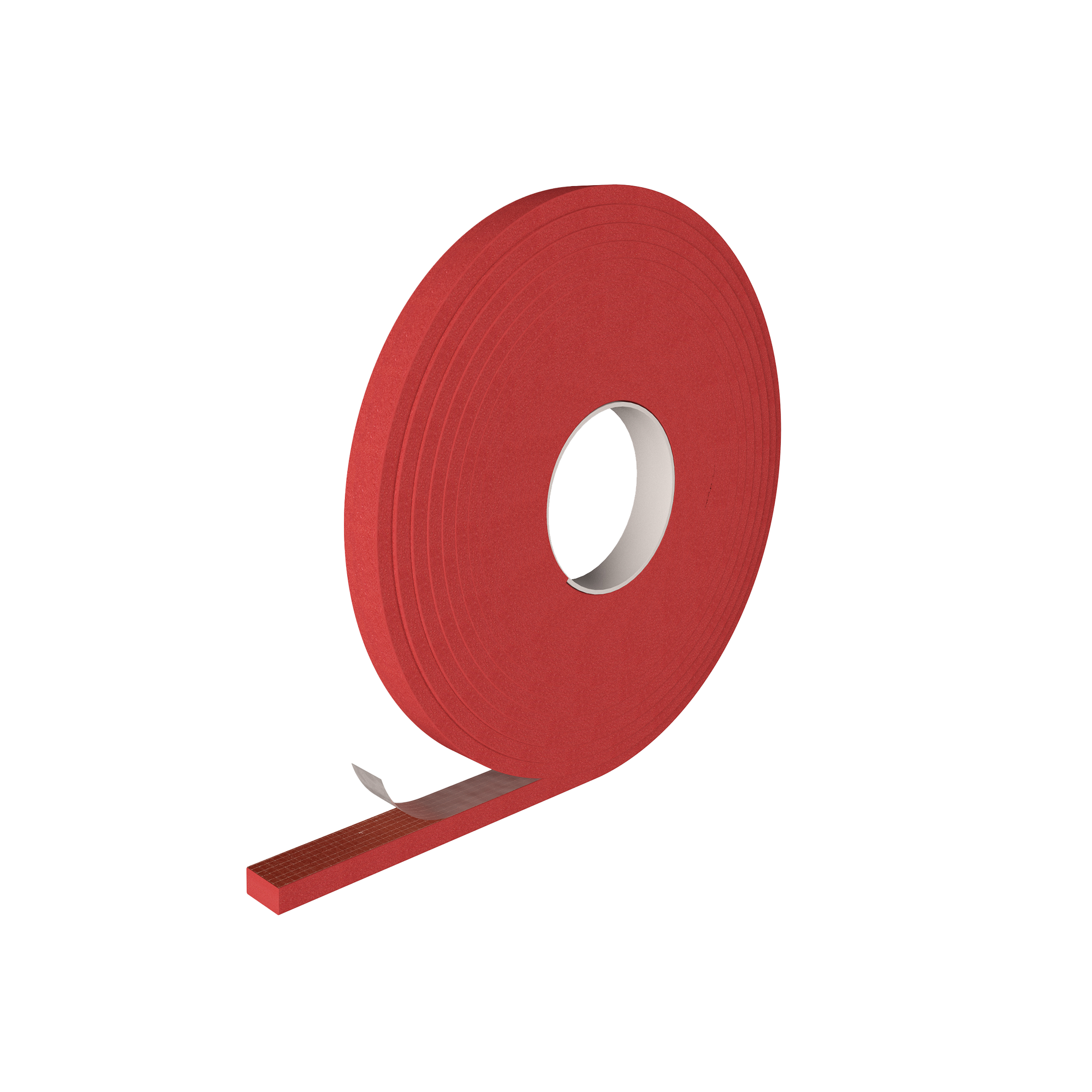

EXPAND BAND EVO

CODE B
[mm]
measures
[mm]
L
[m]
B
[in]
L
[ft]
pcs.
EXPANDEVO1514 15 1-4 13 0.6 43 32

Technical Data EXPAND BAND

属性 标准 数值经过测试 USC 转换
Classification (1) DIN 18542 BG1 -
Airtightness DIN 18542 conforme ai requisiti BG1 -
Air permeability (α) EN 12114 ≤ 1 m³/(h·m·daPa⅔) -
Tightness in heavy rain EN 1027 ≥ 750 Pa -
Light and humidity resistance DIN 18542 conforme ai requisiti BG1 -
Compatibility with adjacent construction materials DIN 18542 conforme ai requisiti BG1 -
Water vapour transmission (Sd) DIN 18542 conforme ai requisiti BG1 -
Water vapour transmission (Sd) EN ISO 12572 < 0,5 m < 6.993 US perm
Reaction to fire DIN 18542 conforme ai requisiti BG1 -
Reaction to fire DIN 4102-1 class B1 -
Thermal conductivity (λ) EN 12667 ≤ 0,043 W/(m·K) ≤ 0.025 BTU/(h·ft²·°F)
Thermal resistance - -30 / 90 °C -22 / 194 °F
Application temperature - ≥ 5 °C ≥ 41 °F
Storage temperature (2) - 1 / 20 °C 34 / 68 °F
1.
2. Store the product in a dry, covered place for no more than 12 months from the date of manufacturing.
