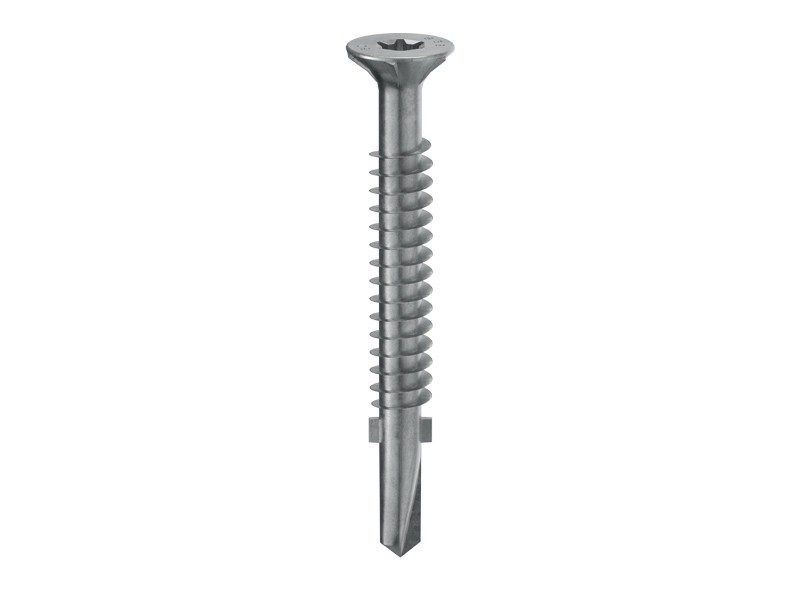

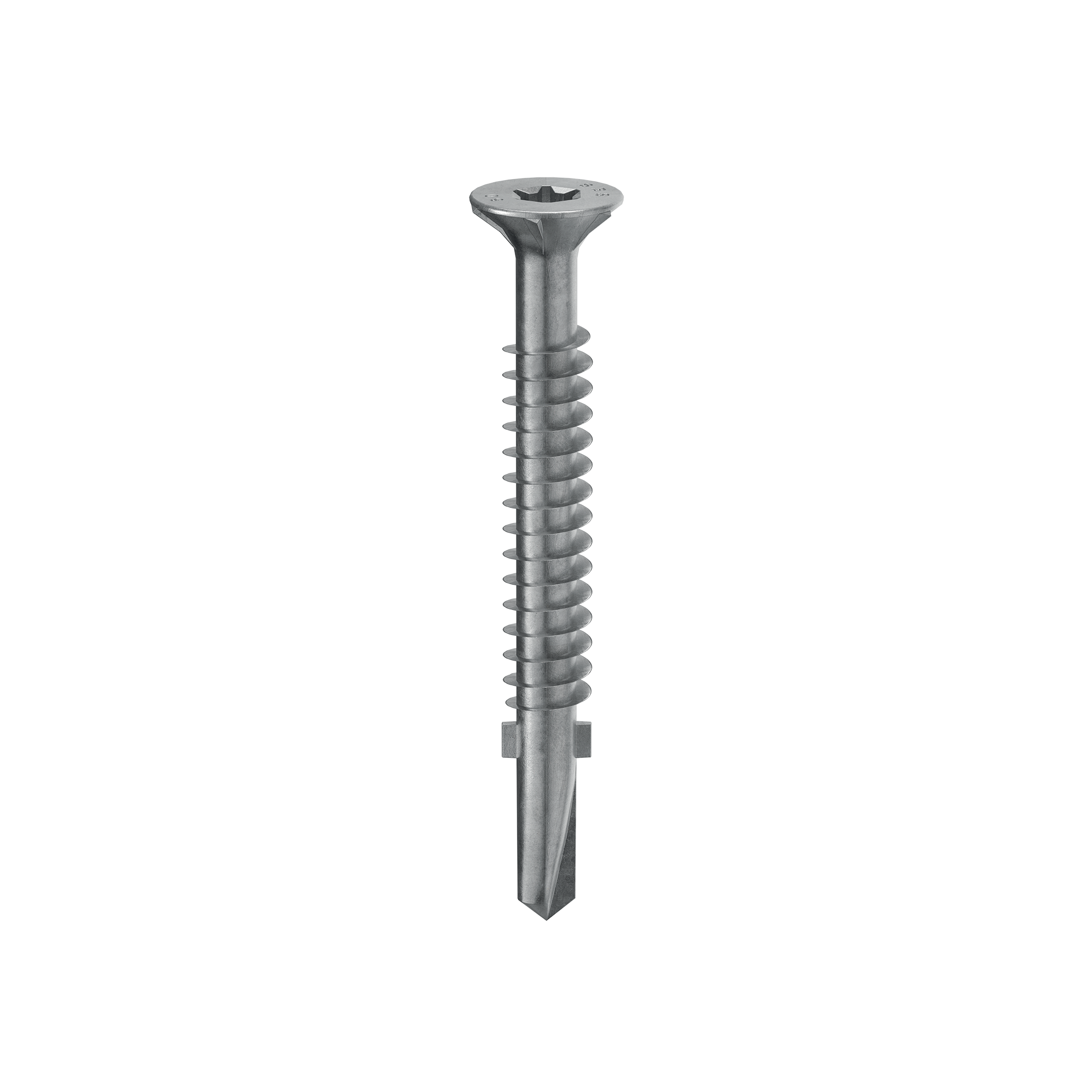

SBS

特点

self-perforating tip with protective fins
countersunk with under-head ribs
from 4,2 mm to 6,3 mm
from 32 mm to 240 mm

文件

技术数据表
技术数据表 USA
File CAD

SBS

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
SBS4232 - 4.2 32 18 0.17 1 1/4'' 11/16'' TX20 500
SBS4238 - 4.2 38 19 0.17 1 1/2'' 3/4'' TX20 500
SBS4838 - 4.8 38 23 0.19 1 1/2'' 7/8'' TX25 200
SBS4845 - 4.8 45 25 0.19 1 3/4'' 1'' TX25 200
SBS5545 - 5.5 45 29 0.22 1 3/4'' 1 1/8'' TX30 200
SBS5550 - 5.5 50 29 0.22 1 15/16'' 1 1/8'' TX30 200
SBS6360 - 6.3 60 35 0.25 2 3/8'' 1 3/8'' TX30 100
SBS6370 - 6.3 70 45 0.25 2 3/4'' 1 3/4'' TX30 100
SBS6385 - 6.3 85 55 0.25 3 3/8'' 2 3/16'' TX30 100
SBS63100 - 6.3 100 55 0.25 4'' 2 3/16'' TX30 100
