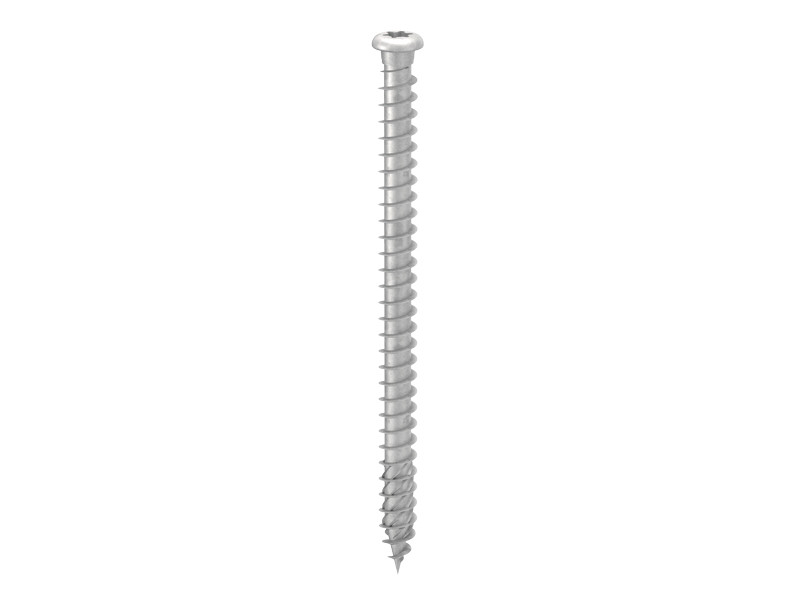

LBS HARDWOOD EVO
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| LBSHEVO580 | - | 5 | 80 | 76 | 0.2 | 3 1/8'' | 3'' | TX20 | 200 |
| LBSHEVO5100 | - | 5 | 100 | 96 | 0.2 | 4'' | 3 3/4'' | TX20 | 200 |
| LBSHEVO5120 | - | 5 | 120 | 116 | 0.2 | 4 3/4'' | 4 9/16'' | TX20 | 200 |
| LBSHEVO760 | - | 7 | 60 | 55 | 0.28 | 2 3/8'' | 2 3/16'' | TX30 | 100 |
| LBSHEVO780 | - | 7 | 80 | 75 | 0.28 | 3 1/8'' | 2 15/16'' | TX30 | 100 |
| LBSHEVO7100 | - | 7 | 100 | 95 | 0.28 | 4'' | 3 3/4'' | TX30 | 100 |
| LBSHEVO7120 | - | 7 | 120 | 115 | 0.28 | 4 3/4'' | 4 1/2'' | TX30 | 100 |
| LBSHEVO7160 | - | 7 | 160 | 155 | 0.28 | 6 1/4'' | 6 1/8'' | TX30 | 100 |
| LBSHEVO7200 | - | 7 | 200 | 195 | 0.28 | 8'' | 7 11/16'' | TX30 | 100 |
