LBS EVO
New
文件
技术数据表
|
|
|---|---|
ICC-ES Evaluation report USA
|
|
ICC-ES Listing report CANADA
|
|
ETA Certificate
|
|
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|

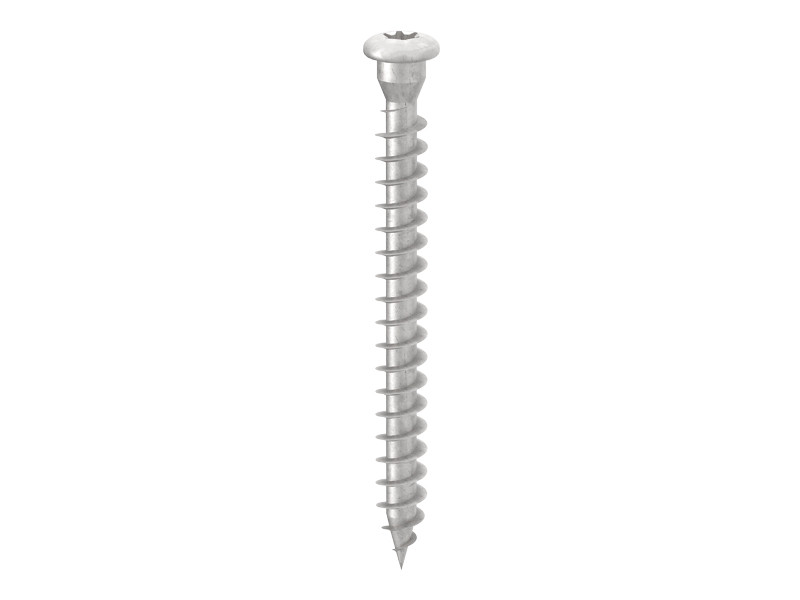

LBS EVO
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| LBSEVO540 | - | 5 | 40 | 36 | 0.2 | 1 9/16'' | 1 7/16'' | TX20 | 500 |
| LBSEVO550 | - | 5 | 50 | 46 | 0.2 | 1 15/16'' | 1 13/16'' | TX20 | 200 |
| LBSEVO560 | - | 5 | 60 | 56 | 0.2 | 2 3/8'' | 2 3/16'' | TX20 | 200 |
| LBSEVO570 | - | 5 | 70 | 66 | 0.2 | 2 3/4'' | 2 5/8'' | TX20 | 200 |
| LBSEVO780 | - | 7 | 80 | 75 | 0.28 | 3 1/8'' | 2 15/16'' | TX30 | 100 |
| LBSEVO7100 | - | 7 | 100 | 95 | 0.28 | 4'' | 3 3/4'' | TX30 | 100 |
