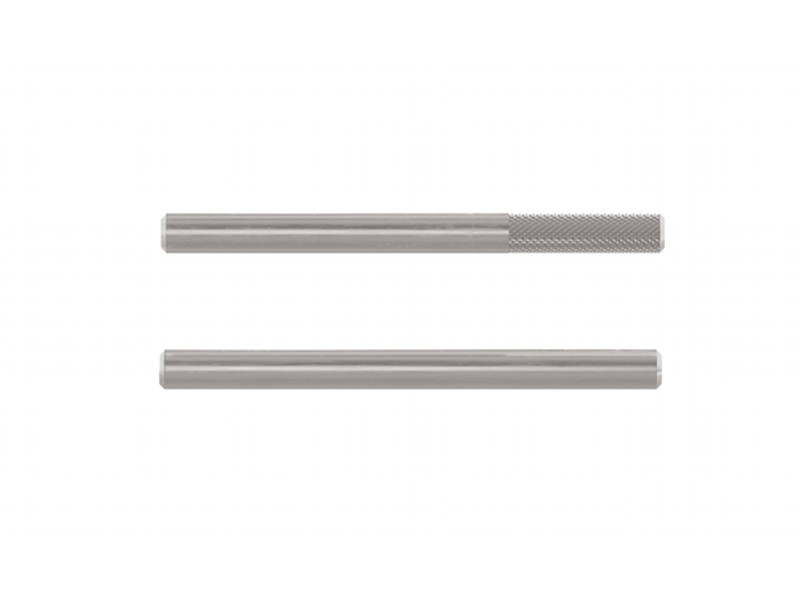

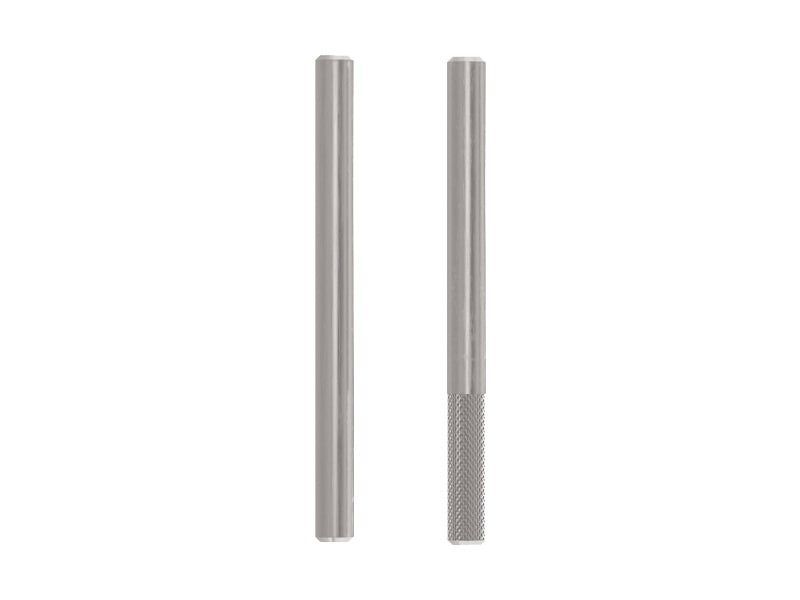

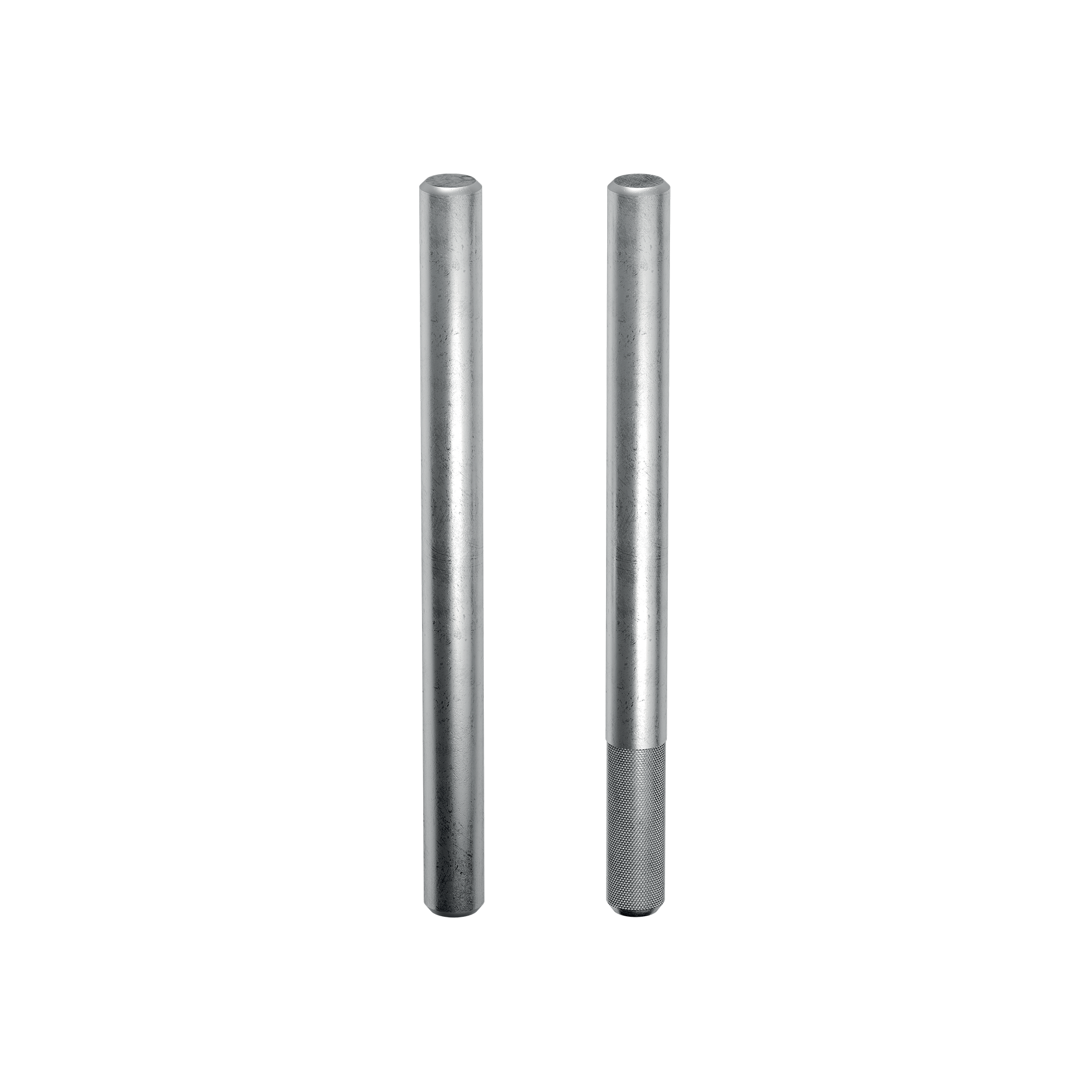

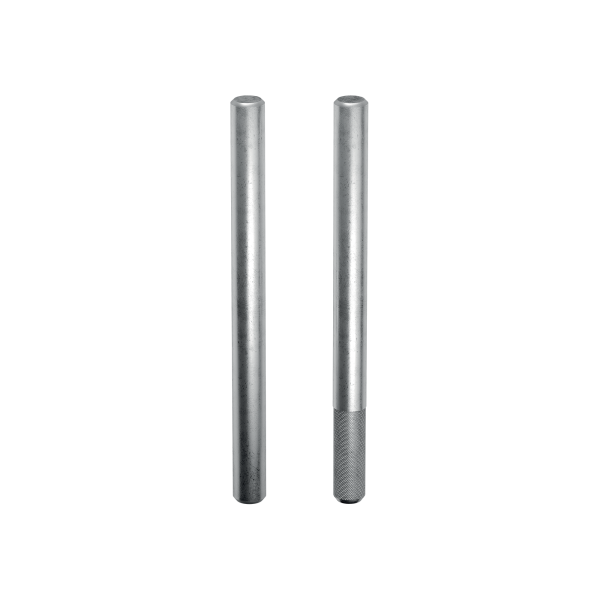

光滑的销钉
STA

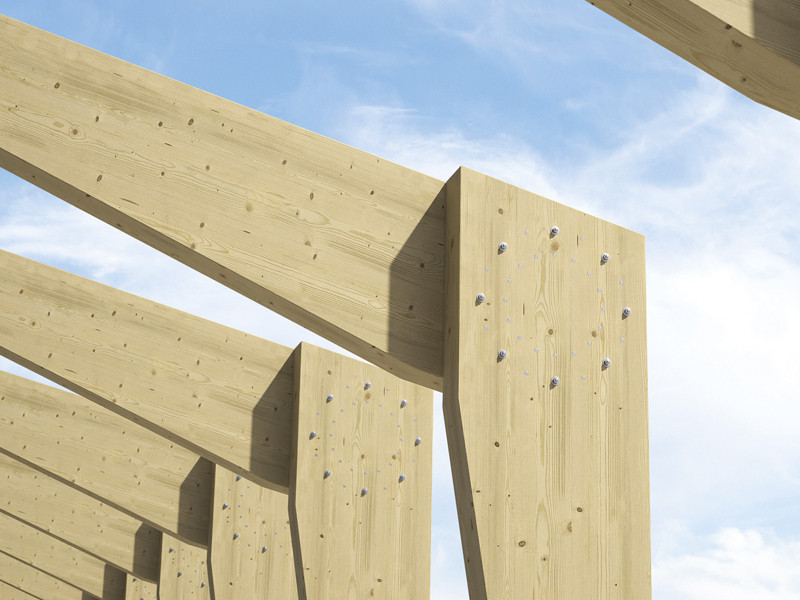

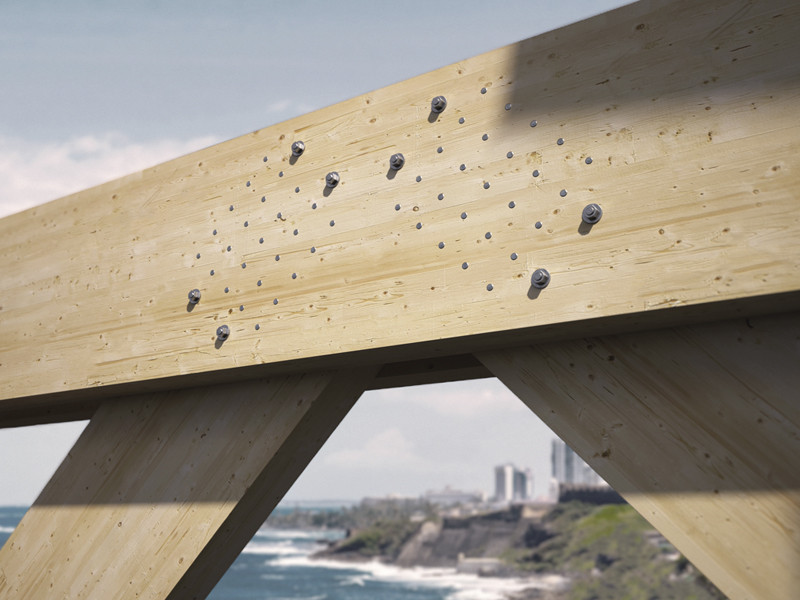

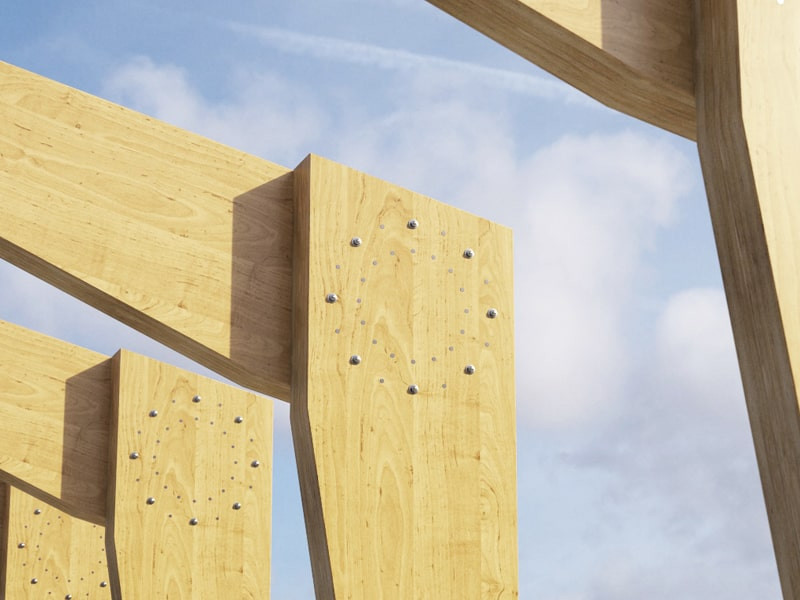

S355 钢种在标准尺寸的结构设计中具有更高的抗剪强度（Ø16 和 Ø20）。

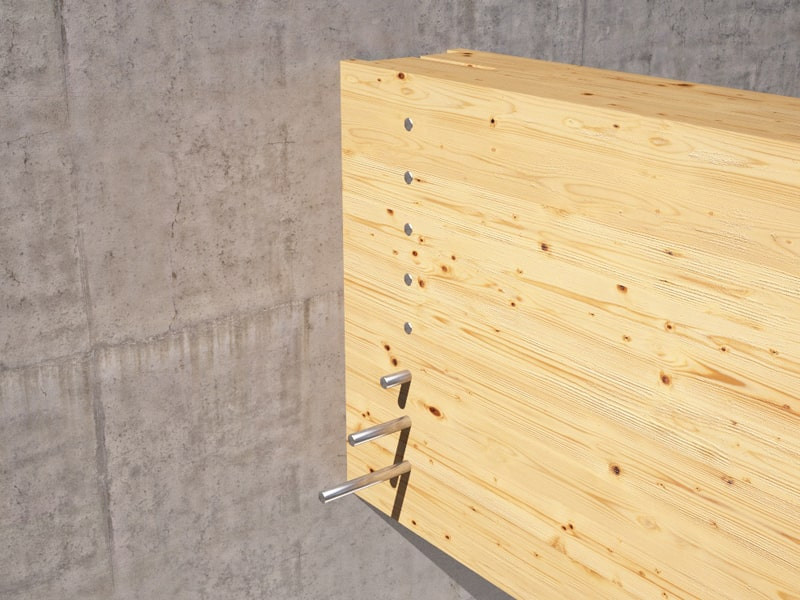

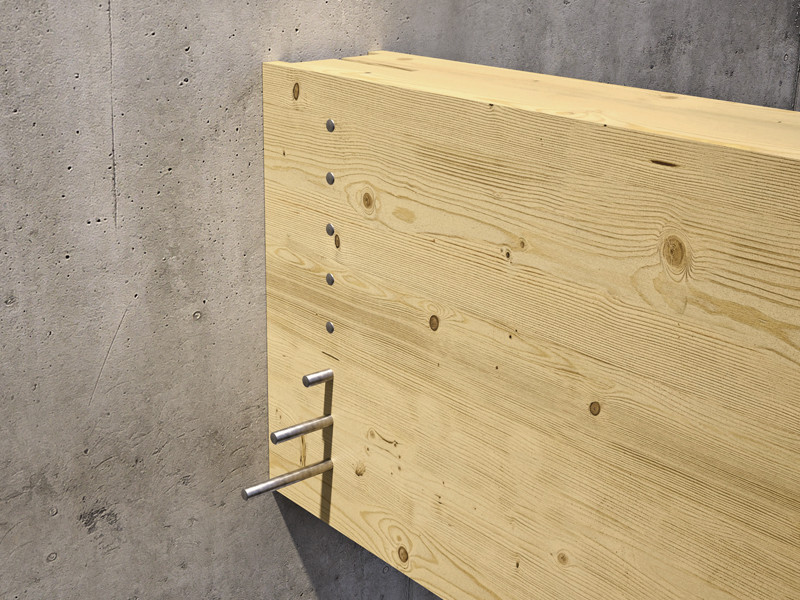

锥形末端，易于将紧固件插入预先钻孔的木构件中。提供 1,0 m 长的型号。
可根据要求提供特制的高粘性钢和几何形状，以免在地震地区使用时被拉出。
文件
技术数据表
|
|
|---|---|
技术数据表 USA
|
|
技术数据表 CANADA
|
|
Item specification
|
STA
| CODE | d₁
[mm]
|
L
[mm]
|
material | pcs. |
|---|---|---|---|---|
| STA860B | 8 | 60 | S235 | 100 |
| STA880B | 8 | 80 | S235 | 100 |
| STA8100B | 8 | 100 | S235 | 100 |
| STA8120B | 8 | 120 | S235 | 100 |
| STA8140B | 8 | 140 | S235 | 100 |
| STA1260B | 12 | 60 | S235 | 50 |
| STA1270B | 12 | 70 | S235 | 50 |
| STA1280B | 12 | 80 | S235 | 50 |
| STA1290B | 12 | 90 | S235 | 50 |
| STA12100B | 12 | 100 | S235 | 50 |
| STA12110B | 12 | 110 | S235 | 50 |
| STA12120B | 12 | 120 | S235 | 50 |
| STA12130B | 12 | 130 | S235 | 50 |
| STA12140B | 12 | 140 | S235 | 25 |
| STA12150B | 12 | 150 | S235 | 25 |
| STA12160B | 12 | 160 | S235 | 25 |
| STA12170B | 12 | 170 | S235 | 25 |
| STA12180B | 12 | 180 | S235 | 25 |
| STA12200B | 12 | 200 | S235 | 25 |
| STA12220B | 12 | 220 | S235 | 25 |
| STA12240B | 12 | 240 | S235 | 25 |
| STA12260B | 12 | 260 | S235 | 25 |
| STA12280B | 12 | 280 | S235 | 25 |
| STA12320B | 12 | 320 | S235 | 25 |
| STA12340B | 12 | 340 | S235 | 25 |
| STA121000B | 12 | 1000 | S235 | 1 |
| STA1680B | 16 | 80 | S355 | 25 |
| STA16100B | 16 | 100 | S355 | 25 |
| STA16110B | 16 | 110 | S355 | 25 |
| STA16120B | 16 | 120 | S355 | 25 |
| STA16130B | 16 | 130 | S355 | 25 |
| STA16140B | 16 | 140 | S355 | 25 |
| STA16150B | 16 | 150 | S355 | 25 |
| STA16160B | 16 | 160 | S355 | 15 |
| STA16170B | 16 | 170 | S355 | 15 |
| STA16180B | 16 | 180 | S355 | 15 |
| STA16190B | 16 | 190 | S355 | 15 |
| STA16200B | 16 | 200 | S355 | 15 |
| STA16220B | 16 | 220 | S355 | 15 |
| STA16240B | 16 | 240 | S355 | 15 |
| STA16260B | 16 | 260 | S355 | 10 |
| STA16280B | 16 | 280 | S355 | 10 |
| STA16300B | 16 | 300 | S355 | 10 |
| STA16320B | 16 | 320 | S355 | 10 |
| STA16340B | 16 | 340 | S355 | 10 |
| STA16360B | 16 | 360 | S355 | 10 |
| STA16380B | 16 | 380 | S355 | 10 |
| STA16400B | 16 | 400 | S355 | 10 |
| STA16500B | 16 | 500 | S355 | 10 |
| STA161000B | 16 | 1000 | S355 | 1 |
| STA20120B | 20 | 120 | S355 | 10 |
| STA20140B | 20 | 140 | S355 | 10 |
| STA20160B | 20 | 160 | S355 | 10 |
| STA20180B | 20 | 180 | S355 | 10 |
| STA20190B | 20 | 190 | S355 | 10 |
| STA20200B | 20 | 200 | S355 | 10 |
| STA20220B | 20 | 220 | S355 | 10 |
| STA20240B | 20 | 240 | S355 | 10 |
| STA20260B | 20 | 260 | S355 | 5 |
| STA20300B | 20 | 300 | S355 | 5 |
| STA20320B | 20 | 320 | S355 | 5 |
| STA20360B | 20 | 360 | S355 | 5 |
| STA20400B | 20 | 400 | S355 | 5 |
| STA201000B | 20 | 1000 | S355 | 1 |
STA A2 | AISI304
| CODE | d₁
[mm]
|
L
[mm]
|
material | pcs. | |
|---|---|---|---|---|---|
| STA12100A2 | New | 12 | 100 | A2 | AISI304 | 25 |
| STA12120A2 | 12 | 120 | A2 | AISI304 | 1 | |
| STA12140A2 | 12 | 140 | A2 | AISI304 | 1 | |
| STA12160A2 | 12 | 160 | A2 | AISI304 | 1 | |
| STA12180A2 | New | 12 | 180 | A2 | AISI304 | 25 |
| STA12200A2 | 12 | 200 | A2 | AISI304 | 1 | |
| STA12220A2 | New | 12 | 220 | A2 | AISI304 | 25 |
| STA12240A2 | New | 12 | 240 | A2 | AISI304 | 25 |
| STA12260A2 | New | 12 | 260 | A2 | AISI304 | 25 |
| STA16120A2 | New | 16 | 120 | A2 | AISI304 | 10 |
| STA16140A2 | 16 | 140 | A2 | AISI304 | 1 | |
| STA16150A2 | New | 16 | 150 | A2 | AISI304 | 10 |
| STA16160A2 | New | 16 | 160 | A2 | AISI304 | 10 |
| STA16180A2 | New | 16 | 180 | A2 | AISI304 | 10 |
| STA16200A2 | New | 16 | 200 | A2 | AISI304 | 10 |
| STA16220A2 | New | 16 | 220 | A2 | AISI304 | 10 |
| STA16240A2 | New | 16 | 240 | A2 | AISI304 | 10 |
| STA16260A2 | New | 16 | 260 | A2 | AISI304 | 10 |
| STA16280A2 | New | 16 | 280 | A2 | AISI304 | 10 |
| STA16300A2 | New | 16 | 300 | A2 | AISI304 | 10 |
| STA20160A2 | New | 20 | 160 | A2 | AISI304 | 10 |
| STA20180A2 | New | 20 | 180 | A2 | AISI304 | 10 |
| STA20200A2 | New | 20 | 200 | A2 | AISI304 | 10 |
| STA20220A2 | New | 20 | 220 | A2 | AISI304 | 10 |
| STA20240A2 | New | 20 | 240 | A2 | AISI304 | 10 |
| STA20260A2 | New | 20 | 260 | A2 | AISI304 | 5 |
| STA20280A2 | New | 20 | 280 | A2 | AISI304 | 5 |
| STA20300A2 | New | 20 | 300 | A2 | AISI304 | 5 |
| STA20320A2 | New | 20 | 320 | A2 | AISI304 | 5 |
| STA20340A2 | New | 20 | 340 | A2 | AISI304 | 5 |
| STA20360A2 | New | 20 | 360 | A2 | AISI304 | 5 |
| STA20380A2 | New | 20 | 380 | A2 | AISI304 | 5 |
