高透汽单片防水透汽膜
TRASPIR EVO 160

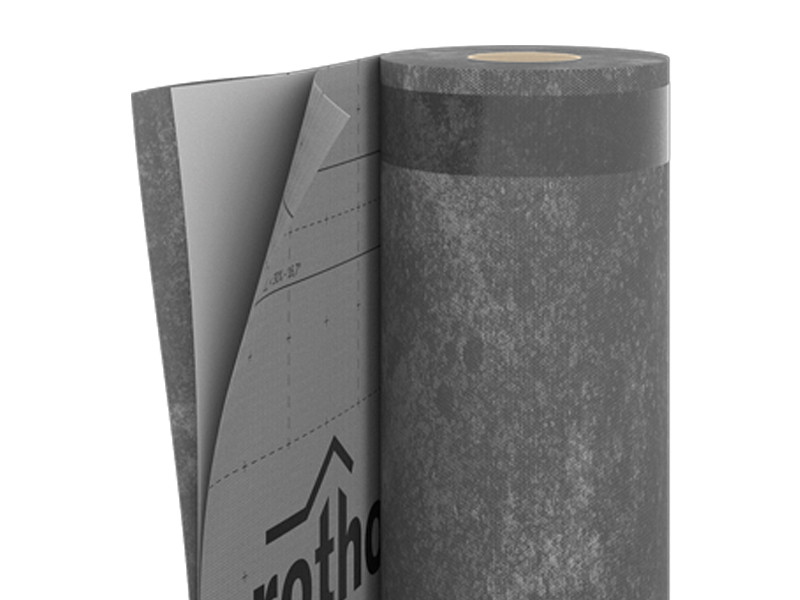

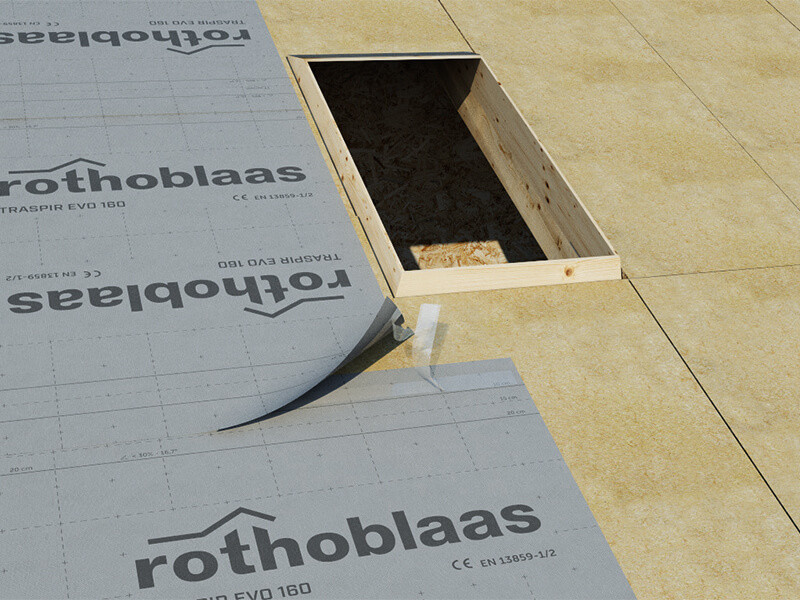

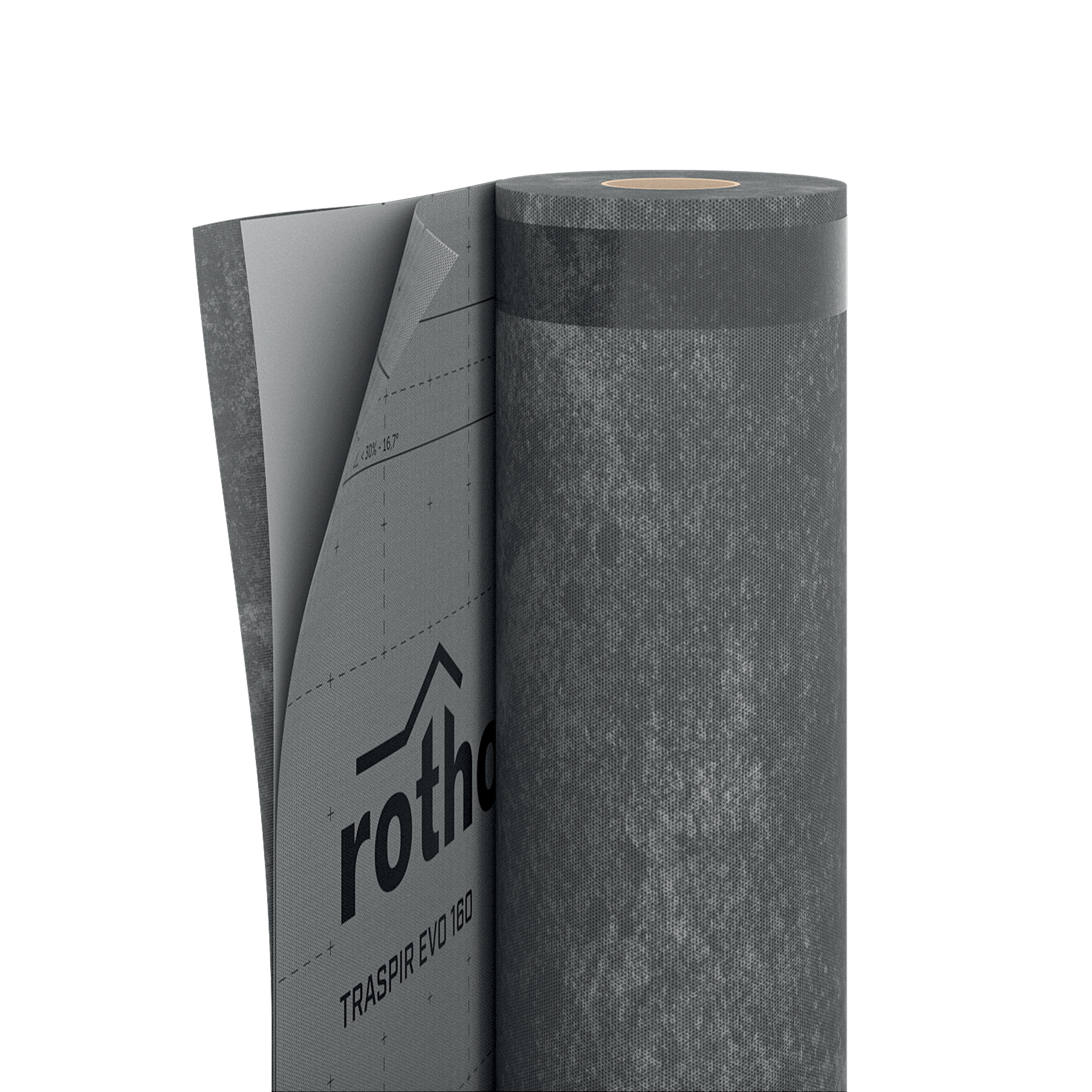

高透汽单片防水透汽膜TRASPIR EVO 160提供防水和气密性，以及优良的防火性能（B-s1，d2）和高紫外线稳定性。它由两个聚丙烯保护层之间的单片挤压弹性薄膜组成，设计用于安装在屋顶的内侧和外侧。
TRASPIR EVO 160，为您的木结构提供紫外线稳定性和最佳耐火性

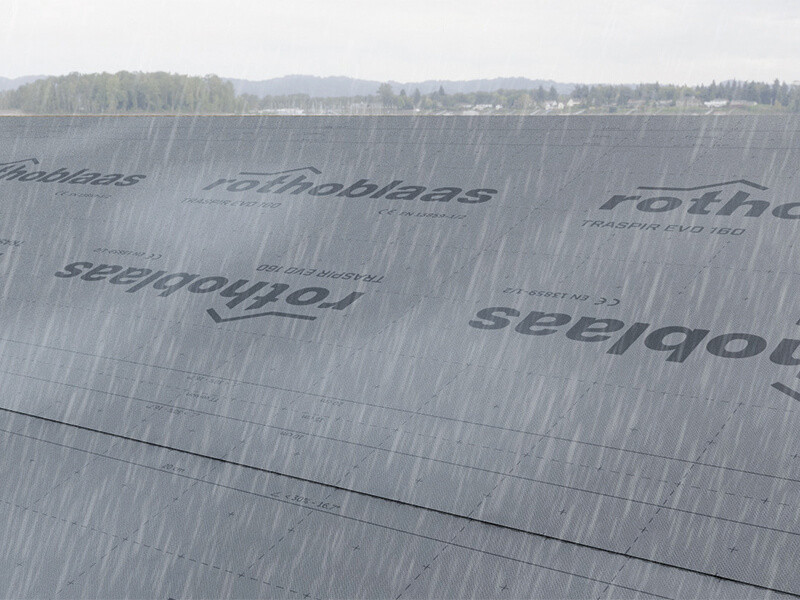

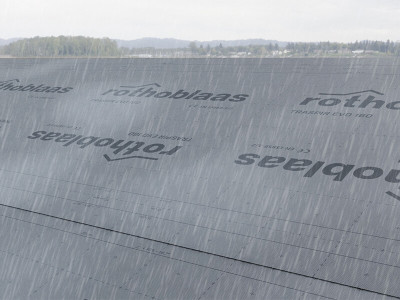

TRASPIR EVO 160防水透汽膜的单片结构由于其特殊的成分，保证了长期的优异的耐久性。离火自熄膜（B-s1、d2级），在发生火灾时，有助于保护结构，不会传播火焰。它的紫外线稳定性在完全暴露于辐射下，没有任何保护的情况下，是非常优异的：膜已通过人工老化试验，这项试验需要使膜暴露在紫外线下1000小时。
文件
技术数据表
|
|
|---|---|
符合性声明（DOC）
|
|
Xml-File WUFI
|
|
施工步骤
|
|
| Environmental Product Declaration (EPD) | 下载 |
TEST REPORT USA-CA
|
|
TEST REPORT AUS/NZ
|
TRASPIR EVO 160
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| TEVO160 | TRASPIR EVO 160 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 30 |
| TTTEVO160 | TRASPIR EVO 160 TT | TT | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 30 |
| TEVO16030 | TRASPIR EVO 160 3m | - | 3 | 50 | 150 | 9' 10 1/8'' | 164 | 1615 | 30 |
Technical Data
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 160 g/m² | 0.52 oz/ft² |
| Thickness | EN 1849-2 | 0,5 mm | 20 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,1 m | 34.965 PERM |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 12.3 PERM | - |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 702 ng/(s·m²·Pa) | - |
| Tensile strength MD/CD | EN 12311-1 | 280 / 220 N/50mm | 32 / 25 lb/in |
| Elongation MD/CD | EN 12311-1 | 50 / 60 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 180 / 200 N | 40 / 45 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Thermal resistance | - | -40 / 100 °C | -40 / 212 °F |
| Reaction to fire | EN 13501-1 | class B-s1,d2 | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,4 W/(m·K) | 2.77 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 370 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 160 | - |
| Joint strength | EN 12317-2 | > 200 / N/50mm | > 22.840589 / lb/in |
| VOC content | - | 0 % | - |
| UV stability | EN 13859-2 | 6 months | - |
| Exposure to weather | - | 6 weeks | - |
| Water column | ISO 811 | > 500 cm | > 196.8504 in |
| After artificial ageing - watertightness | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - tensile strength MD/CD | EN 1297 / EN 12311-1 | 260 / 200 N/50mm | 30 / 23 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 40 / 50 % | - |
| Flexibility at low temperatures | EN 1109 | -40 / °C | -40 / °F |
| Driving rain test | TU Berlin | passed | - |
| Water penetration resistance of exterior walls at 300Pa | ASTM E331 | passed | - |
| Air barrier | ASTM E2178 | passed | - |
| Air barrier (before and after ageing) | CAN/ULC-S741 | compliant | - |
Composition
| TOP LAYER | non-woven PP fabric |
|---|---|
| middle layer | breathable monolithic PE film |
| BOTTOM LAYER | non-woven PP fabric |
