墙体用高透汽薄膜

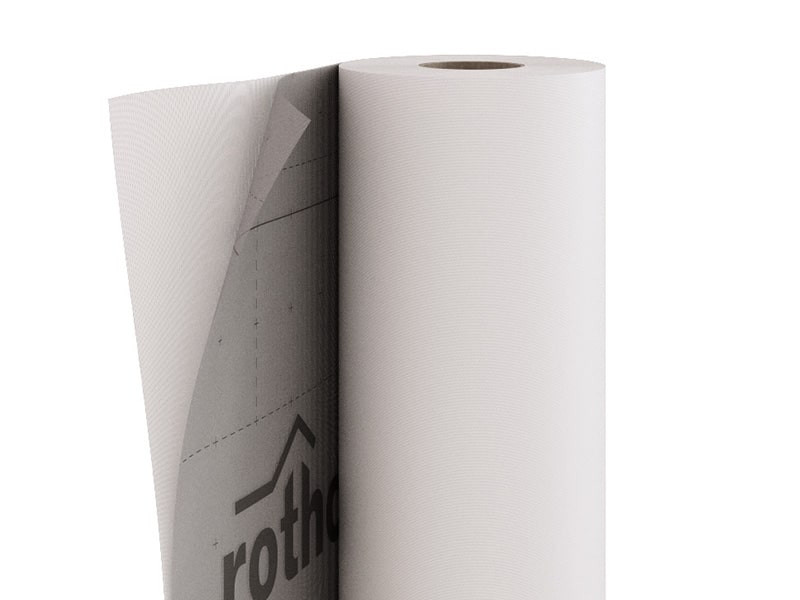

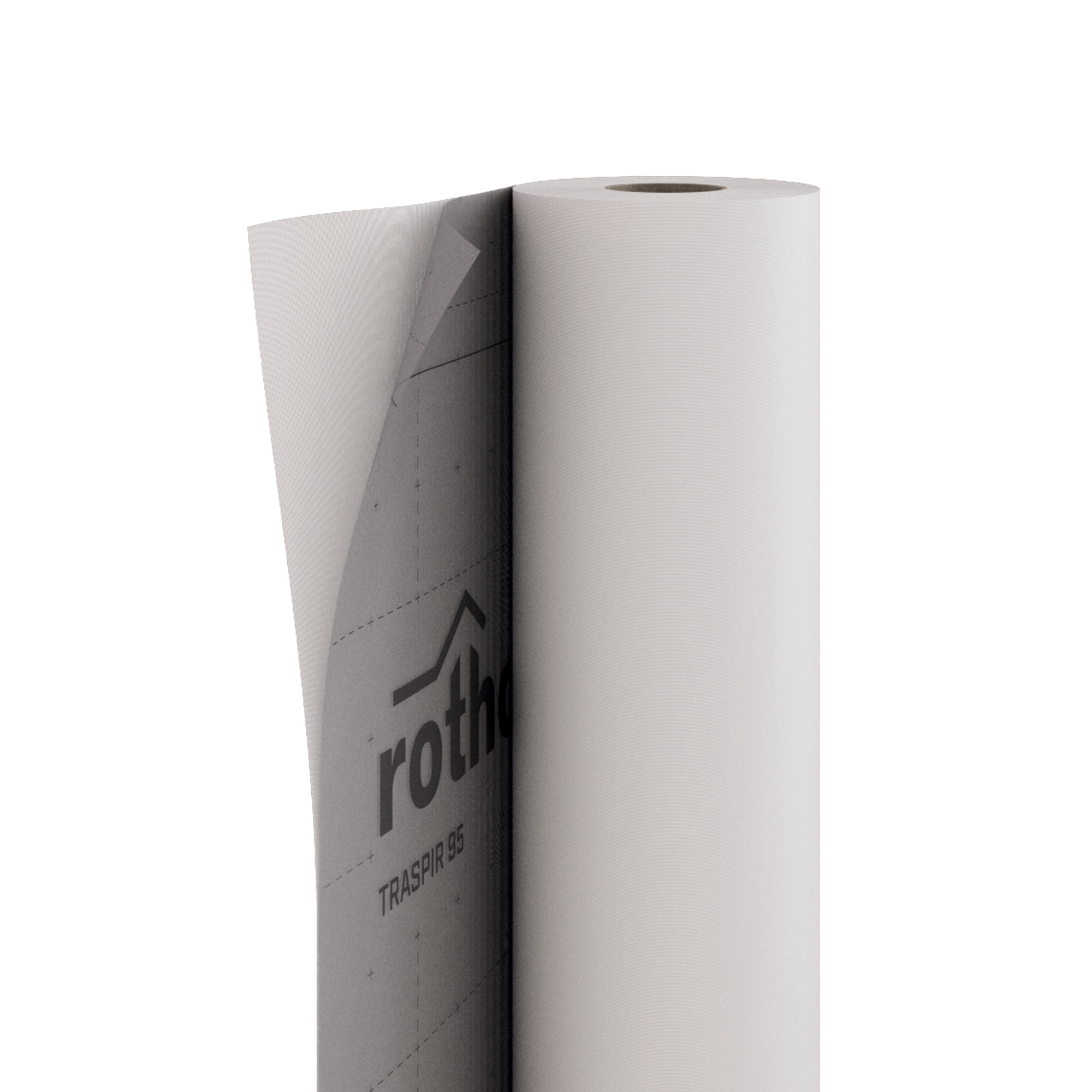

TRASPIR 95

TRASPIR 95是一种用于墙壁的高透汽膜，具有优异的性价比。它可用于封闭式接缝立面，设计用于保证风密性，也可作为施工期间的临时保护层。

TRASPIR 95，高度透汽膜，确保成本效益和性能

TRASPIR 95高透汽膜由两层无纺布和中间一层透汽聚丙烯膜组成。设计用于墙壁的外侧和内侧。它所创造的防风层确保了保温层的热效率，保护了围护，提高了材料的耐久性。

技术数据表	Choose a Language
施工步骤	Choose a Language

CODE	description	tape	H [m]	L [m]	A [m²]	H [ft]	L [ft]	A [sft]	pcs./pallet
T95	TRASPIR 95	-	1.5	50	75	4' 11''	164	807	46

属性	标准	数值经过测试	USC 转换
Mass per unit area	EN 1849-2	95 g/m²	0.31 oz/ft²
Thickness	EN 1849-2	0,4 mm	16 mil
Water vapour transmission (Sd)	EN 1931	0,02 m	174.825 US perm
Water vapour transmission (dry cup)	ASTM E96/ E96M	125 US perm	-
Water vapour transmission (dry cup)	ASTM E96/ E96M	7115 ng/(s·m²·Pa)	-
Tensile strength MD/CD	EN 12311-1	210 / 105 N/50mm	24 / 12 lbf/in
Elongation MD/CD	EN 12311-1	65 / 70 %	-
Resistance to nail tearing MD/CD	EN 12310-1	75 / 90 N	17 / 20 lbf
Watertightness	EN 1928	class W1	-
Resistance to temperature	-	-40 / 80 °C	-40 / 176 °F
Reaction to fire	EN 13501-1	class E	-
Resistance to penetration of air	EN 12114	< 0,05 m³/(m²·h·50Pa)	< 0.003 cfm/ft² at 50Pa
Thermal conductivity (λ)	-	0,3 W/(m·K)	0.17 BTU/(h·ft·°F)
Specific heat	-	1800 J/(kg·K)	-
Density	-	ca. 238 kg/m³	-
Water vapour resistance factor (μ)	-	ca. 50	-
UV stability ⁽¹⁾	-	336h (3 months)	-
Watertightness after artificial ageing	EN 1297 / EN 1928	class W1	-
Dopo invecchiamento artificiale - resistenza a trazione MD/CD	EN 1297 / EN 12311-1	190 / 90 N/50mm	22 / 10 lb/in
Dopo invecchiamento artificiale - allungamento	EN 1297 / EN 12311-1	45 / 45 %	-
Flexibility at low temperatures	EN 1109	-40 °C	-40 °F
VOC	-	not relevant	-
