高透汽性防水透汽膜
TRASPIR 150

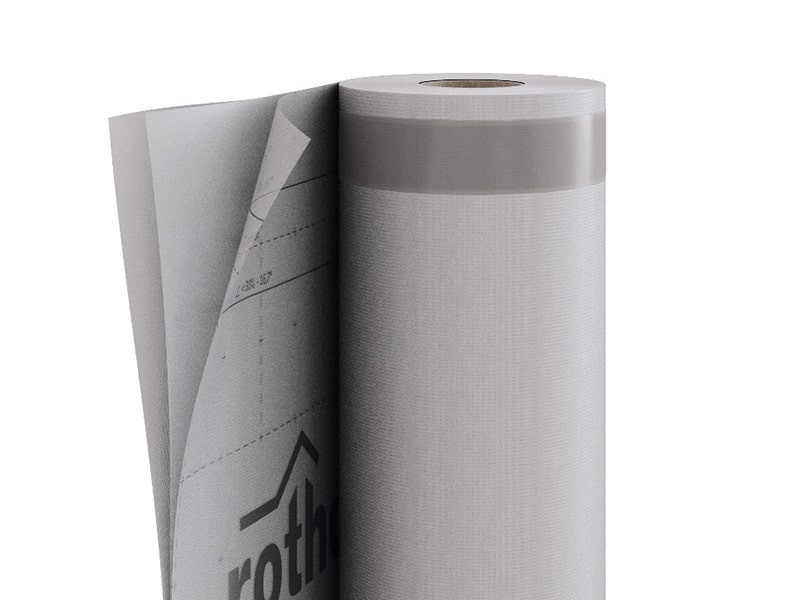

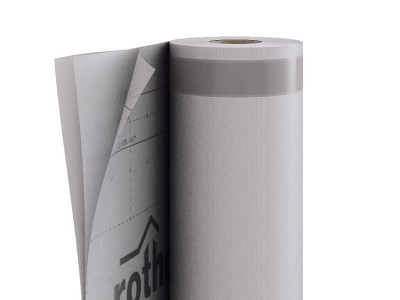

高透气膜TRASPIR 150优化了气密性，限制了不受控制的空气流通，并保护结构免受夏季热气和冬季冷气的侵袭。有整合和未整合胶带的版本，也有3米的版本。它是由法国CSTB认证的R2级。它由微孔膜和聚丙烯保护层组成，设计用于墙壁和屋顶的内外侧。
TRASPIR 150，用于最佳气密性的柔性防水膜
文件
技术数据表
|
|
|---|---|
符合性声明（DOC）
|
|
Item specification
|
|
File BIM.rfa
|
|
Xml-File WUFI
|
|
施工步骤
|
TRASPIR 150
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| T150 | TRASPIR 150 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 28 |
| TTT150 | TRASPIR 150 TT | TT | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 28 |
| T15030 | TRASPIR 150 3m | - | 3 | 50 | 150 | 9' 10 1/8'' | 164 | 1615 | 20 |
Technical Data TRASPIR 150
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 150 g/m² | 0.49 oz/ft² |
| Thickness | EN 1849-2 | 0,7 mm | 28 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,02 m | 174.825 PERM |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 125 PERM | - |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 7115 ng/(s·m²·Pa) | - |
| Tensile strength MD/CD | EN 12311-1 | 350 / 210 N/50mm | 40 / 24 lb/in |
| Elongation MD/CD | EN 12311-1 | 100 / 125 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 190 / 225 N | 43 / 51 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | < 0,04 m³/(m²·h·50Pa) | < 0.002 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 2.08 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 215 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 40 | - |
| VOC content | - | 0 % | - |
| UV stability | EN 13859-2 | 3 months | - |
| Exposure to weather | - | 2 weeks | - |
| Water column | ISO 811 | > 250 cm | > 98.4252 in |
| After artificial ageing - watertightness | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - tensile strength MD/CD | EN 1297 / EN 12311-1 | 310 / 180 N/50mm | 35 / 21 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 45 / 60 % | - |
| Flexibility at low temperatures | EN 1109 | -40 / °C | -40 / °F |
Technical Data TRASPIR 150 OLD
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 150 g/m² | 0.49 oz/ft² |
| Thickness | EN 1849-2 | 0,5 mm | 20 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,05 m | 69.93 PERM |
| Tensile strength MD/CD | EN 12311-1 | 315 / 250 N/50mm | 36 / 29 lb/in |
| Elongation MD/CD | EN 12311-1 | 61 / 66 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 255 / 270 N | 57 / 61 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | 0 m³/(m²·h·50Pa) | 0 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 2.08 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 300 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 100 | - |
| VOC content | - | 0 % | - |
| UV stability | EN 13859-2 | 3 months | - |
| Exposure to weather | - | 4 weeks | - |
| Water column | ISO 811 | > 300 cm | > 118.11024 in |
| After artificial ageing - watertightness | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - tensile strength MD/CD | EN 1297 / EN 12311-1 | 295 / 225 N/50mm | 34 / 26 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 45 / 47 % | - |
| Flexibility at low temperatures | EN 1109 | -40 / °C | -40 / °F |
| Driving rain test | TU Berlin | passed | - |
Composition TRASPIR 150
| TOP LAYER | non-woven PP fabric |
|---|---|
| middle layer | PP breathable film |
| BOTTOM LAYER | non-woven PP fabric |
Composition TRASPIR 150 OLD
| TOP LAYER | non-woven PP fabric |
|---|---|
| middle layer | PP breathable film |
| BOTTOM LAYER | non-woven PP fabric |
