具有可变蒸汽扩散性和加强网格的薄膜

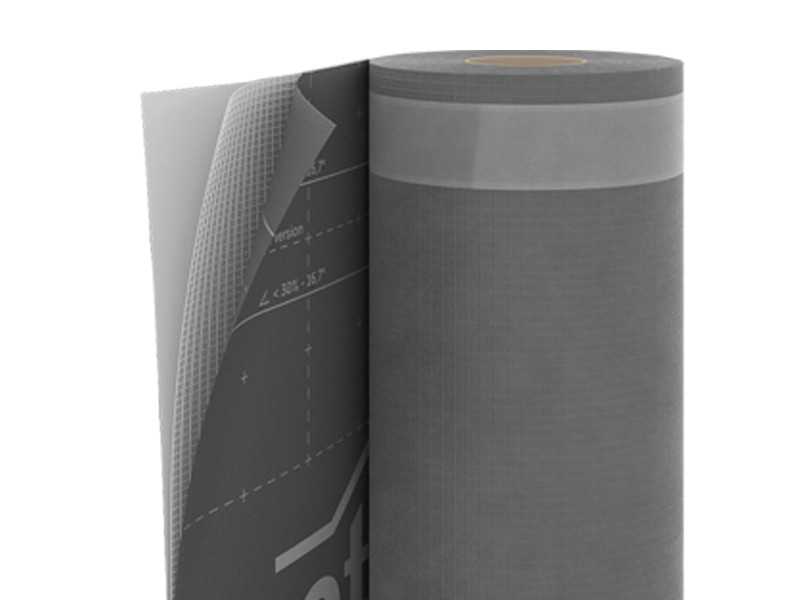

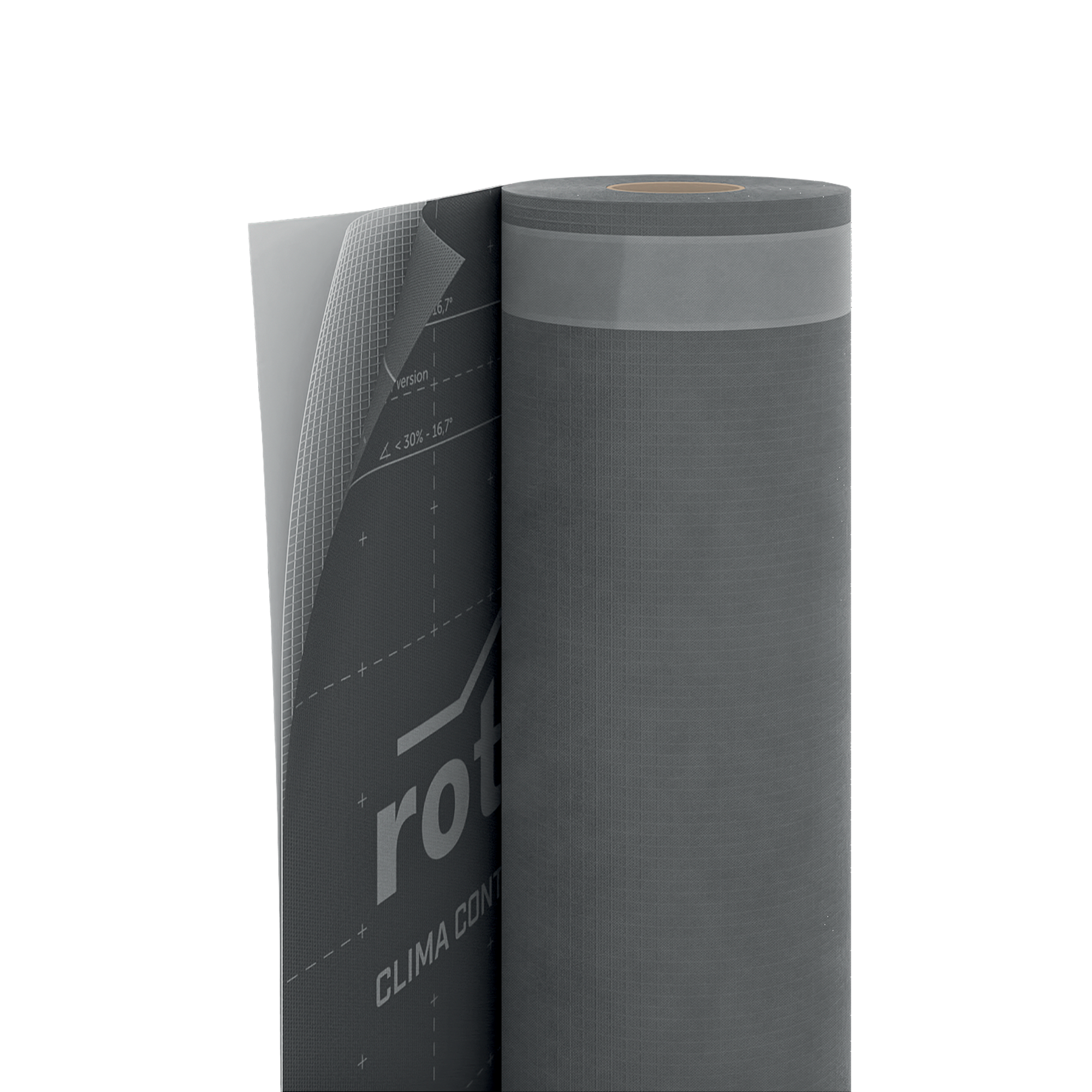

CLIMA CONTROL NET 160

CLIMA CONTROL NET 160是一种具有可变蒸汽扩散性的薄膜，可防止天气影响，在内部相对湿度过高时可透汽，并在内部湿度处于适当水平时用作蒸汽控制膜。它是提高建筑维护和现有结构修复解决方案能量性能的理想薄膜。

CLIMA CONTROL NET 160：呼吸膜与隔汽膜的单一解决方案

由于其特殊的组成和加强网格，CLIMA CONTROL NET 160膜不受码钉、钉子或行走引起的磨损造成的机械应力的影响。特殊的PA膜使产品能够适应建筑物的湿度条件。如果薄膜与高湿度接触，它将从蒸汽控制层转变为透汽产品，确保结构保持干燥。它是为环境保护署和生命周期评价环境声明所研制的产品之一。

技术数据表	Choose a Language
符合性声明（DOC）	Choose a Language
File BIM.rfa	Choose a Language
Xml-File WUFI	Choose a Language
施工步骤	Choose a Language
Environmental Product Declaration (EPD)	下载
Test Report	Choose a Language
TEST REPORT USA-CA	Choose a Language

CODE	description	tape	H [m]	L [m]	A [m²]	H [ft]	L [ft]	A [sft]	pcs./pallet
CLIMATT160	CLIMA CONTROL NET 160 TT	TT	1.5	50	75	4' 11''	164	807	25

属性	标准	数值经过测试	USC 转换
Mass per unit area	EN 1849-2	160 g/m²	0.52 oz/ft²
Thickness	EN 1849-2	0,5 mm	20 mil
Variable water vapour transmission (Sd)	EN 12572	0,5 / 5 m	6.993 / 0.699 PERM
Water vapour transmission (dry cup)	ASTM E96/ E96M	2.68 PERM	-
Water vapour transmission (dry cup)	ASTM E96/ E96M	153 ng/(s·m²·Pa)	-
Water vapour transmission (wet cup)	ASTM E96/ E96M	7.91 PERM	-
Water vapour transmission (wet cup)	ASTM E96/ E96M	452 ng/(s·m²·Pa)	-
Tensile strength MD/CD	EN 12311-2	400 / 270 N/50mm	46 / 31 lb/in
Elongation MD/CD	EN 12311-2	20 / 20 %	-
Resistance to nail tearing MD/CD	EN 12310-1	240 / 250 N	54 / 56 lbf
Watertightness	EN 1928	compliant	-
Thermal resistance	-	-40 / 80 °C	-40 / 176 °F
Reaction to fire	EN 13501-1	class E	-
Resistance to penetration of air	EN 12114	0 m³/(m²·h·50Pa)	0 cfm/ft² at 50Pa
Water vapour resistance - after artificial ageing	EN 1296 / EN 1931	compliant	-
Water vapour resistance - in the presence of alkalis	EN 1847 / EN 12311-2	npd	-
Thermal conductivity (λ)	-	0,3 W/(m·K)	2.08 (BTU·in)/(h·ft²·°F)
Specific heat	-	1800 J/(kg·K)	-
Density	-	ca. 320 kg/m³	-
Variable water vapour resistance factor (μ)	-	ca. 1000 / 10000	-
VOC content	-	0 %	-
UV stability	EN 13859-2	3 months	-
Exposure to weather	-	4 weeks	-
Water column	ISO 811	> 250 cm	> 98.4252 in
