特殊高粘力胶带,也可抹灰

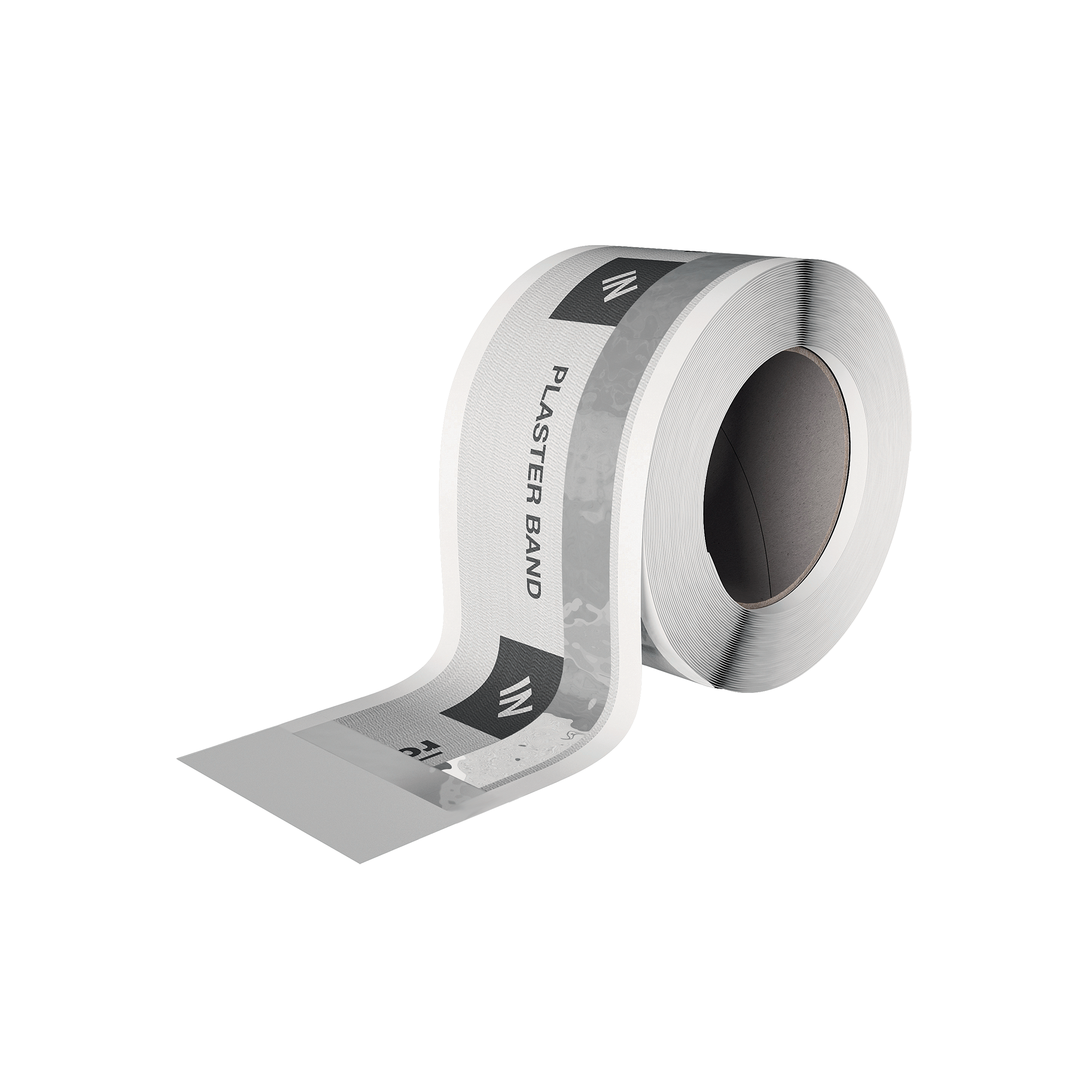

PLASTER BAND IN|OUT

PLASTER BAND IN 是 PLASTER BAND OUT是高粘力胶带,即使在低温下,也能适用于大多数表面。由技术织物制成,安装后可抹灰。

视频

PLASTER BAND IN/OUT:可抹灰的蒸汽控制和气密胶带

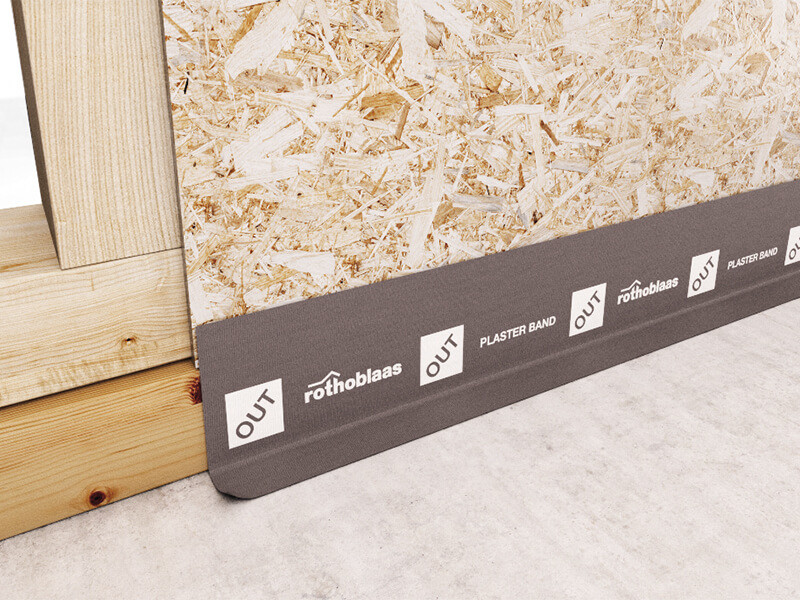

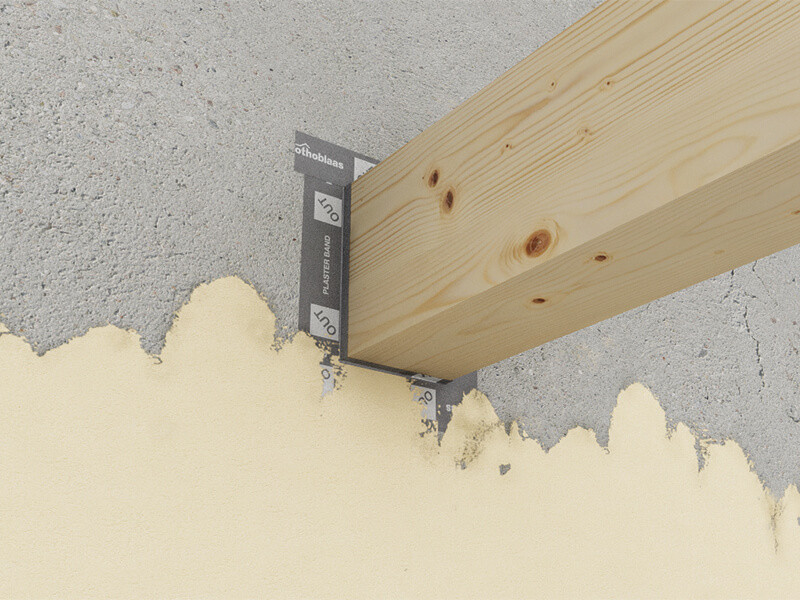

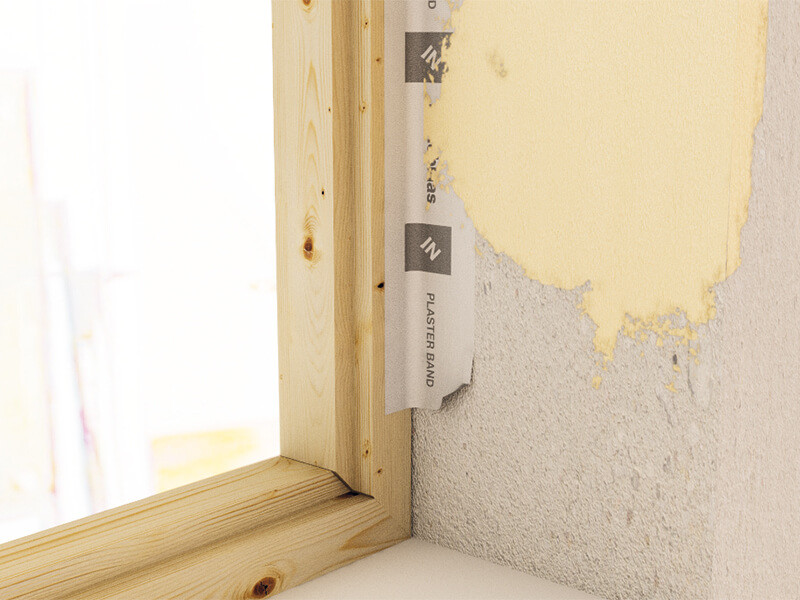

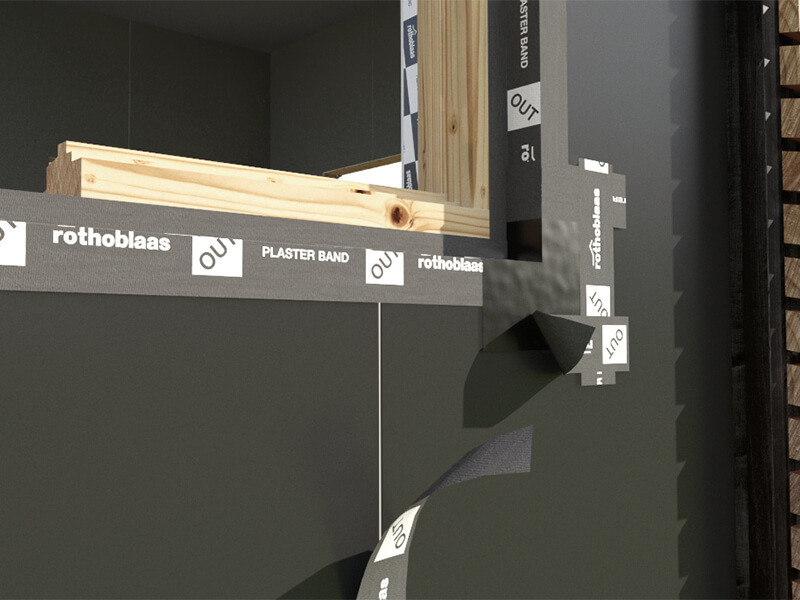

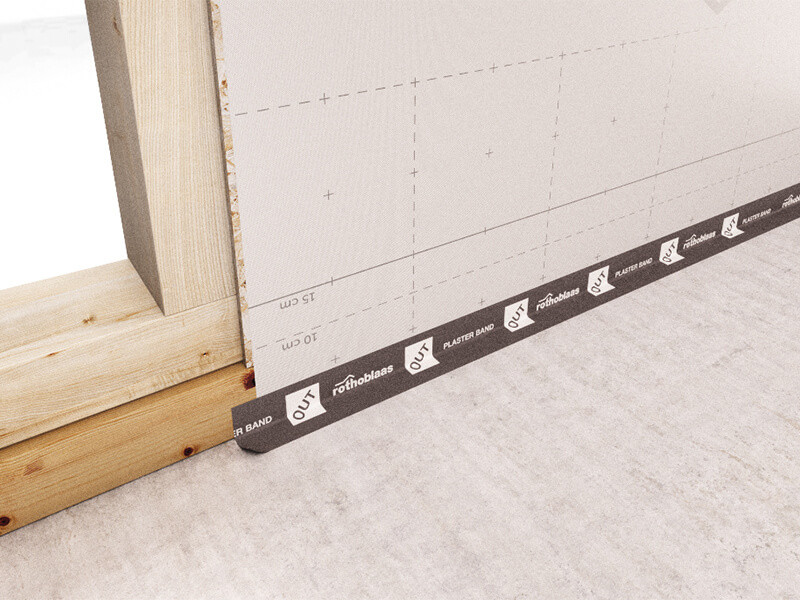

PLASTER BAND有两种版本:PLASTER BAND IN用于围护结构内部,PLASTER BAND OUT用于围护结构外部。即使在狭窄的空间和角落中使用,这两种高粘力胶带的PP离型纸也可以在没有破坏风险的情况下拆除。

预切割离型纸使其可以快速方便地安装,并且由于可能将胶带隐藏在覆层或石膏后面,具有高度的美观性。

文件

技术数据表

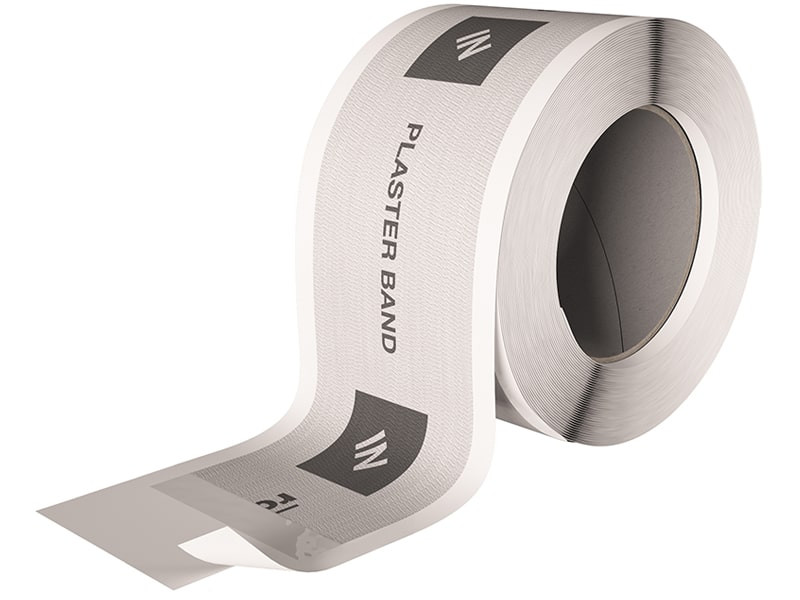

PLASTER BAND IN

CODE liner B
[mm]
L
[m]
liner
[in]
B
[in]
L
[ft]
pcs.
PLASTIN1560 15/60 75 25 0.6/2.4 3 82 5
PLASTIN1585 15/85 100 25 0.6/3.3 3.9 82 4
PLASTIN15135 15/135 150 25 0.6/5.3 5.9 82 2
PLASTIN7520 75 75 25 3 3 82 5
PLASTIN10020 100 100 25 3.9 3.9 82 4
PLASTIN15020 150 150 25 5.9 5.9 82 2

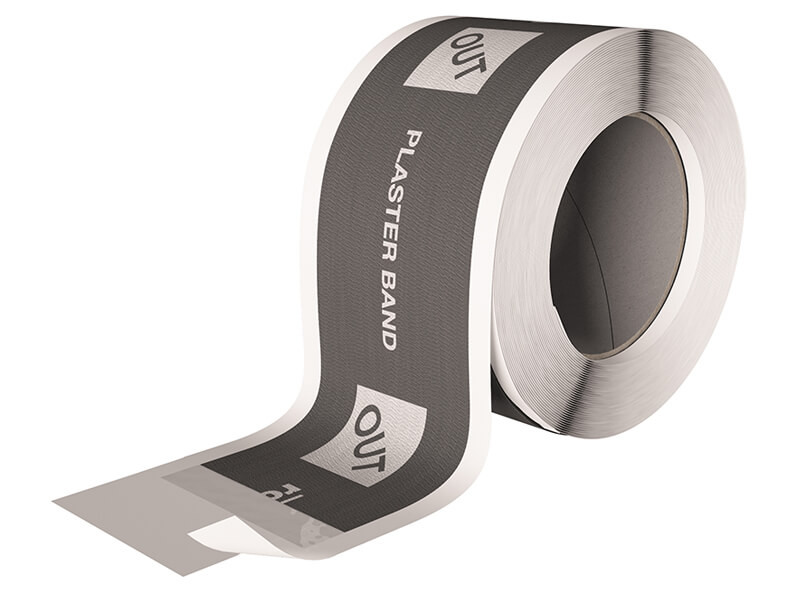

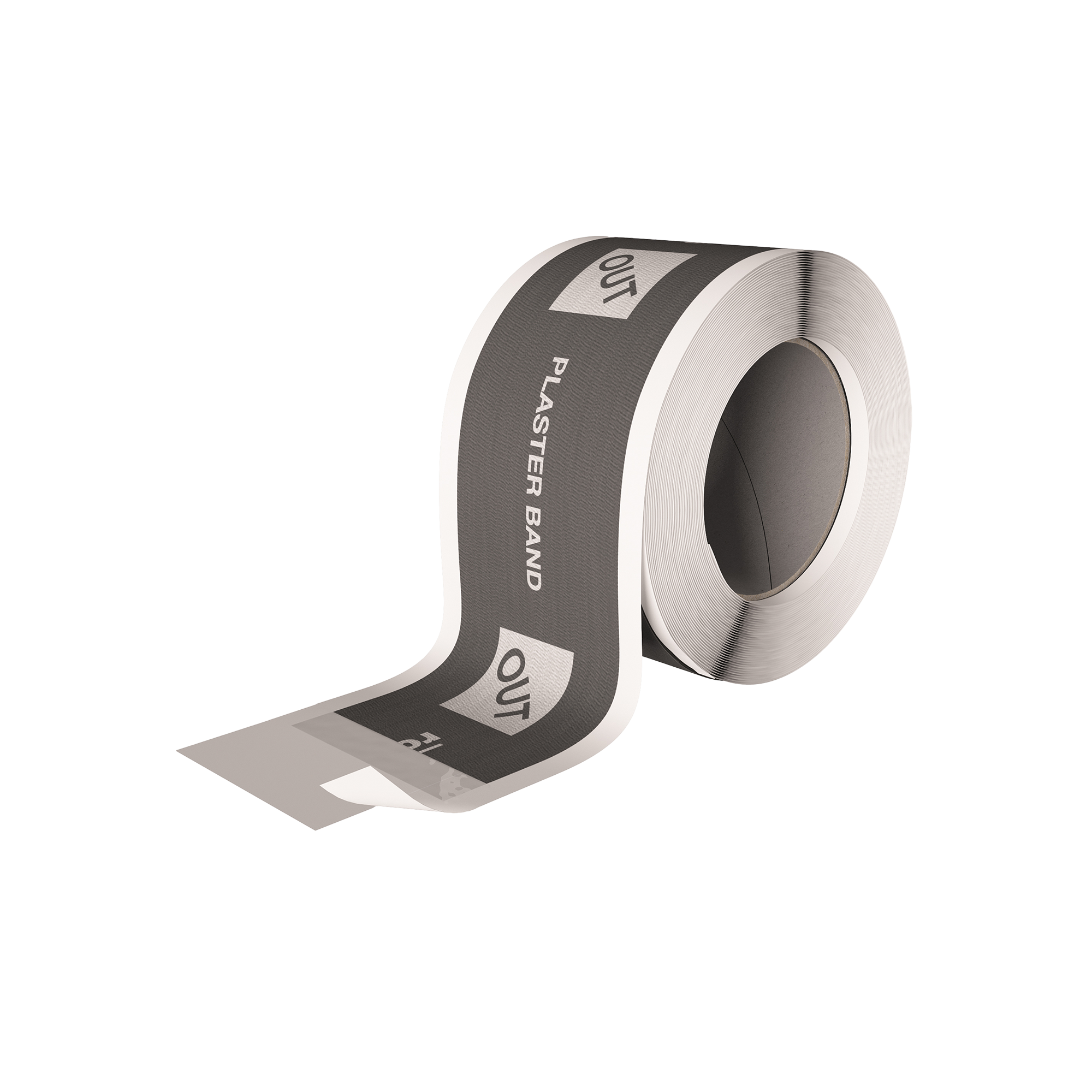

PLASTER BAND OUT

CODE liner B
[mm]
L
[m]
liner
[in]
B
[in]
L
[ft]
pcs.
PLASTOUT1560 15/60 75 25 0.6/2.4 3 82 5
PLASTOUT1585 15/85 100 25 0.6/3.3 3.9 82 4
PLASTOUT15135 15/135 150 25 0.6/5.3 5.9 82 2
PLASTOUT15185 15/185 200 25 0.6/7.3 7.9 82 2
PLASTOUT7520 75 75 25 3 3 82 5
PLASTOUT10020 100 100 25 3.9 3.9 82 4
PLASTOUT15020 150 150 25 5.9 5.9 82 2
PLASTOUT20020 200 200 25 7.9 7.9 82 2

Technical Data PLASTER BAND IN

属性 标准 数值经过测试 USC 转换
Thickness DIN 53855 0,5 mm 19.7 mil
Mass per unit area EN 1848-2 300 g/m² 0.98 oz/ft²
Water vapour transmission (Sd) EN 1931 ca. 10 m ca. 0.35 US perm
Tensile strength MD/CD EN 12311-1 115 / 75 N/50mm 13.13 / 8.57 lbf/in
Elongation at break point MD/CD EN 12311-1 75 / 80 % -
Watertightness EN 13984 W1 -
Tightness in heavy rain EN 1027 ≥ 1050 Pa -
Air permeability EN 1026 ≤ 0,1 m³/(h·m·daPa⅔) -
UV resistance - 3 months -
Reaction to fire EN 13501-1 class E -
Solvents - no -
Emicode procedura di prova GEV EC1 plus -
Thermal resistance - -40 / 80 °C -40 / 176 °F
Application temperature - ≥ 5 °C ≥ 41 °F
Storage temperature (1) - 5 / 25 °C 41 / 77 °F
1. Store the product in a cool, dry place for no more than 24 months.

Technical Data PLASTER BAND OUT

属性 标准 数值经过测试 USC 转换
Thickness EN 1942 0,7 mm 27.6 mil
Mass per unit area EN 1848-2 360 g/m² 1.18 oz/ft²
Water vapour transmission (Sd) EN 1931 ca. 1 m ca. 3.497 US perm
Tensile strength MD/CD EN 12311-1 290 / 190 N/50mm 33.12 / 21.7 lbf/in
Elongation at break point MD/CD EN 12311-1 75 / 135 % -
Watertightness EN 13984 W1 -
Tightness in heavy rain EN 1027 ≥ 1050 Pa -
Air permeability EN 1026 ≤ 0,1 m³/(h·m·daPa⅔) -
UV resistance - 12 months -
Reaction to fire EN 13501-1 class E -
Solvents - no -
Emicode procedura di prova GEV EC1 plus -
Thermal resistance - -40 / 80 °C -40 / 176 °F
Application temperature - > -10 °C > 14 °F
Storage temperature (1) - 5 / 25 °C 41 / 77 °F
1. Store the product in a cool, dry place for no more than 24 months.

Composition PLASTER BAND IN

SUPPORT 2-layer PP vapour control membrane
GLUE acrylic dispersion without solvents
RELEASE LINER easy-release PP film

Composition PLASTER BAND OUT

SUPPORT breathable 2-layer PP membrane
GLUE acrylic dispersion without solvents
RELEASE LINER easy-release PP film
