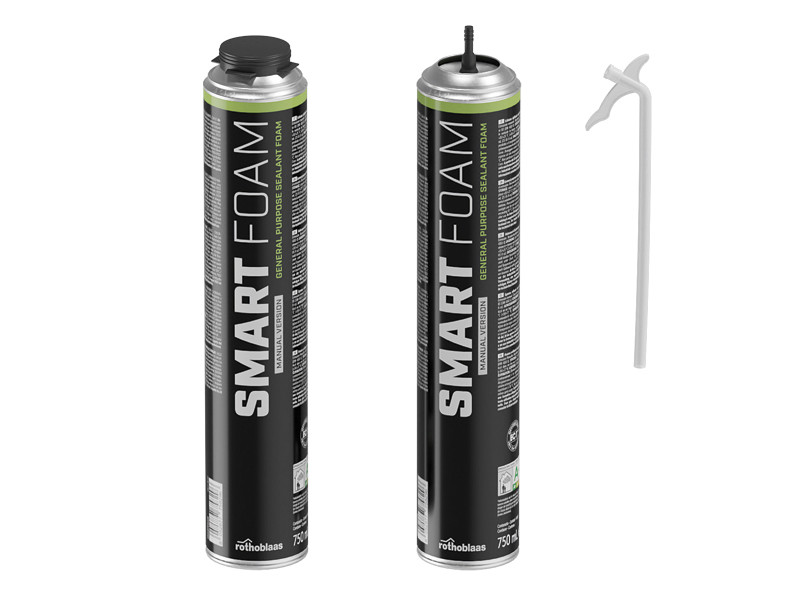

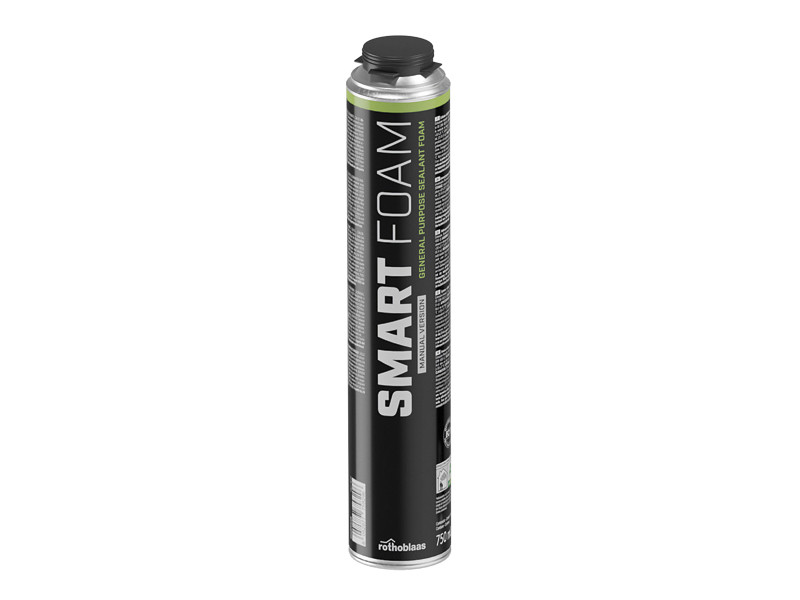

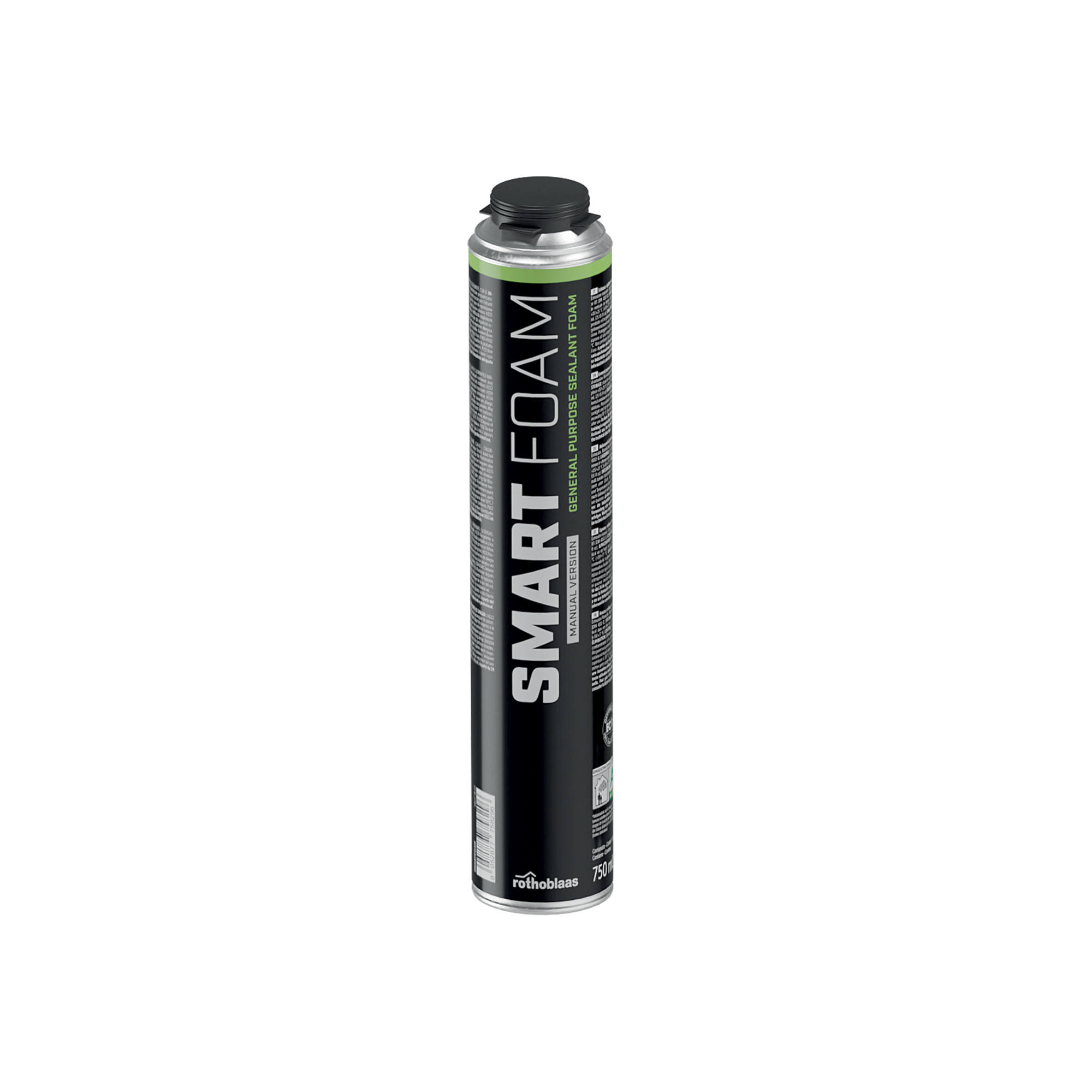

通用泡沫密封胶
SMART FOAM
New
文件
技术数据表
|
|---|
Technical Data
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Composition | - | single component PU | - |
| Colour | - | yellow | - |
| Film formation time 23 °C / 50% RH (1) | - | 9 / 13 minutes | - |
| Cutting time 23 °C / 50% RH (1) | - | 20 / 40 minutes | - |
| Time required for complete hardening 23 °C / 50% RH (1) | - | 60 minutes | - |
| Thermal conductivity (λ) | EN 12667 | 0,03 / 0,035 W/(m·K) | 0.017 / 0.02 BTU/(h·ft²·°F) |
| Reaction to fire | DIN 4102-1 | class B3 | - |
| Temperature resistance once hardened | - | -40 / 90 °C | -40 / 194 °F |
| Application temperature (ambient and support) | - | 5 / 35 °C | 41 / 95 °F |
| Application temperature (cartridge) | - | 15 / 30 °C | 59 / 86 °F |
| VOC content | - | 19.4 % - 191.2 g/L | - |
| French VOC classification | ISO 16000 | A+ | - |
| Emicode | procedura di prova GEV | EC1 plus | - |
| Transport temperature | - | 0 / 35 °C | 32 / 95 °F |
| Storage temperature (2) | - | 15 / 25 °C | 59 / 77 °F |
1. The data expressed may vary depending on the thickness of the product applied and the specific installation conditions: temperature, humidity, ventilation, absorbency of the substrate.
2.
