高粘性钉眼密封胶带

NAIL PLASTER | GEMINI

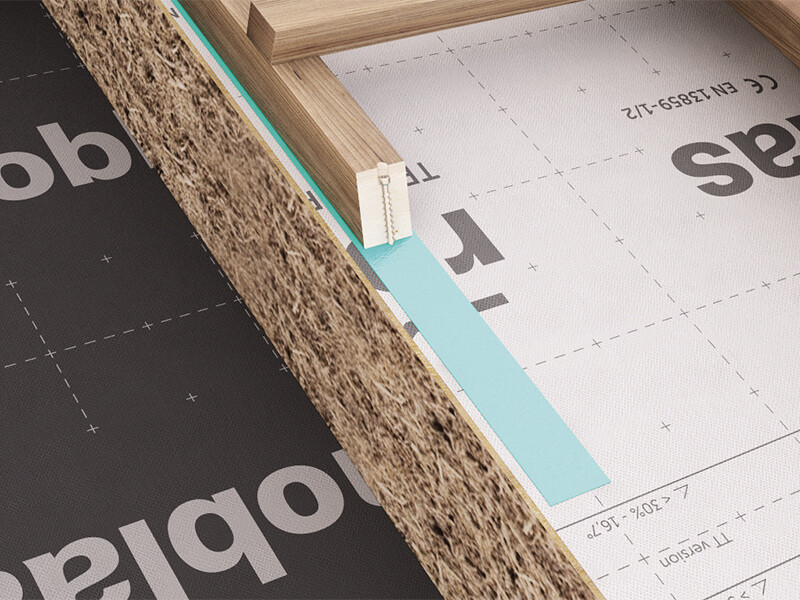

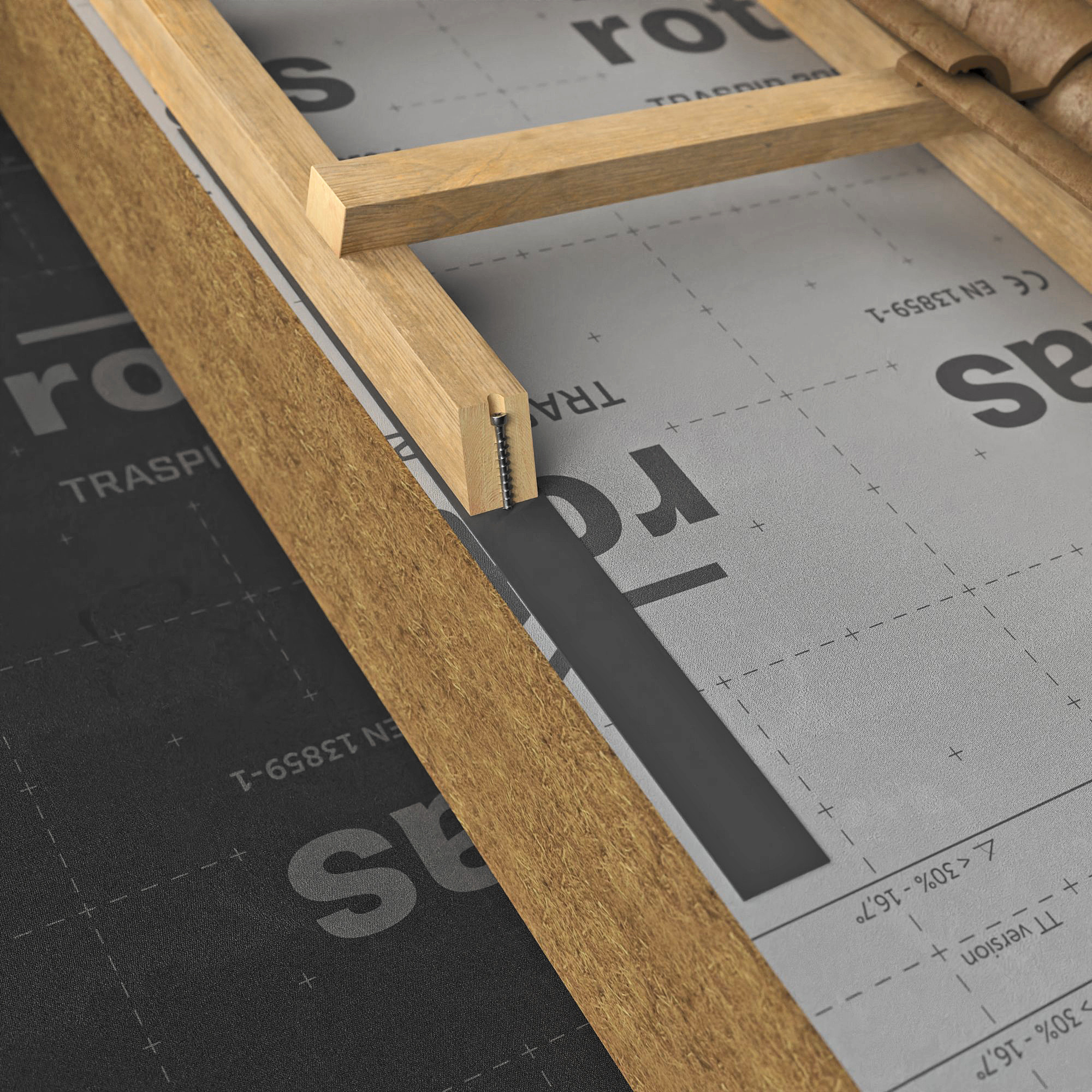

NAIL PLASTER和GEMINI钉眼密封剂胶带确保在固定通风板条的螺钉穿过的位置,实现完全密封。

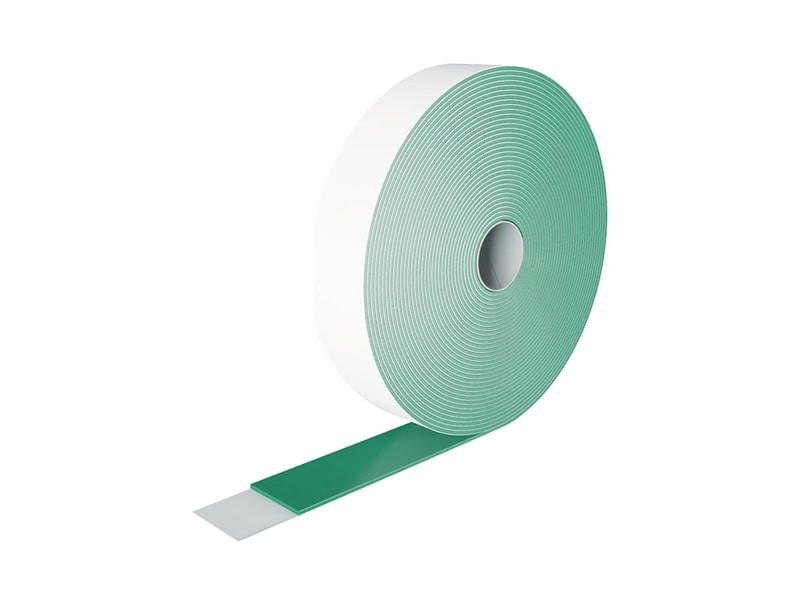

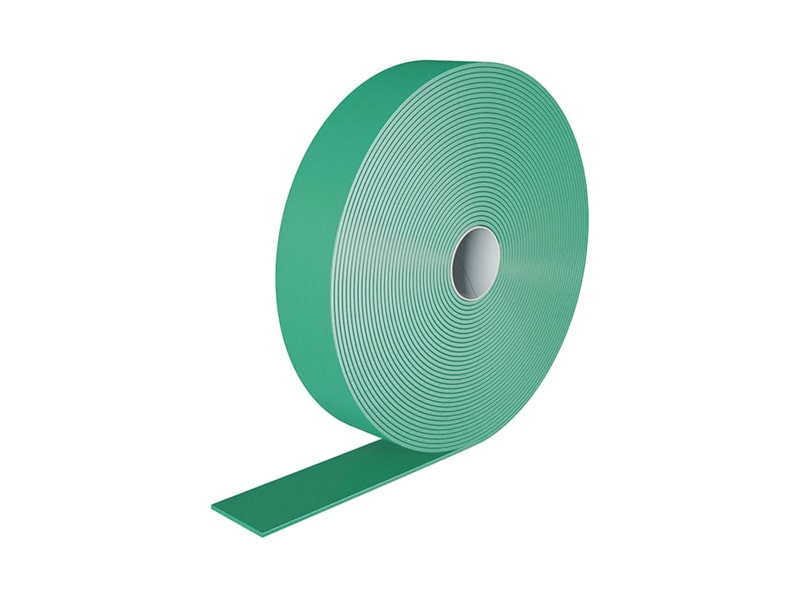

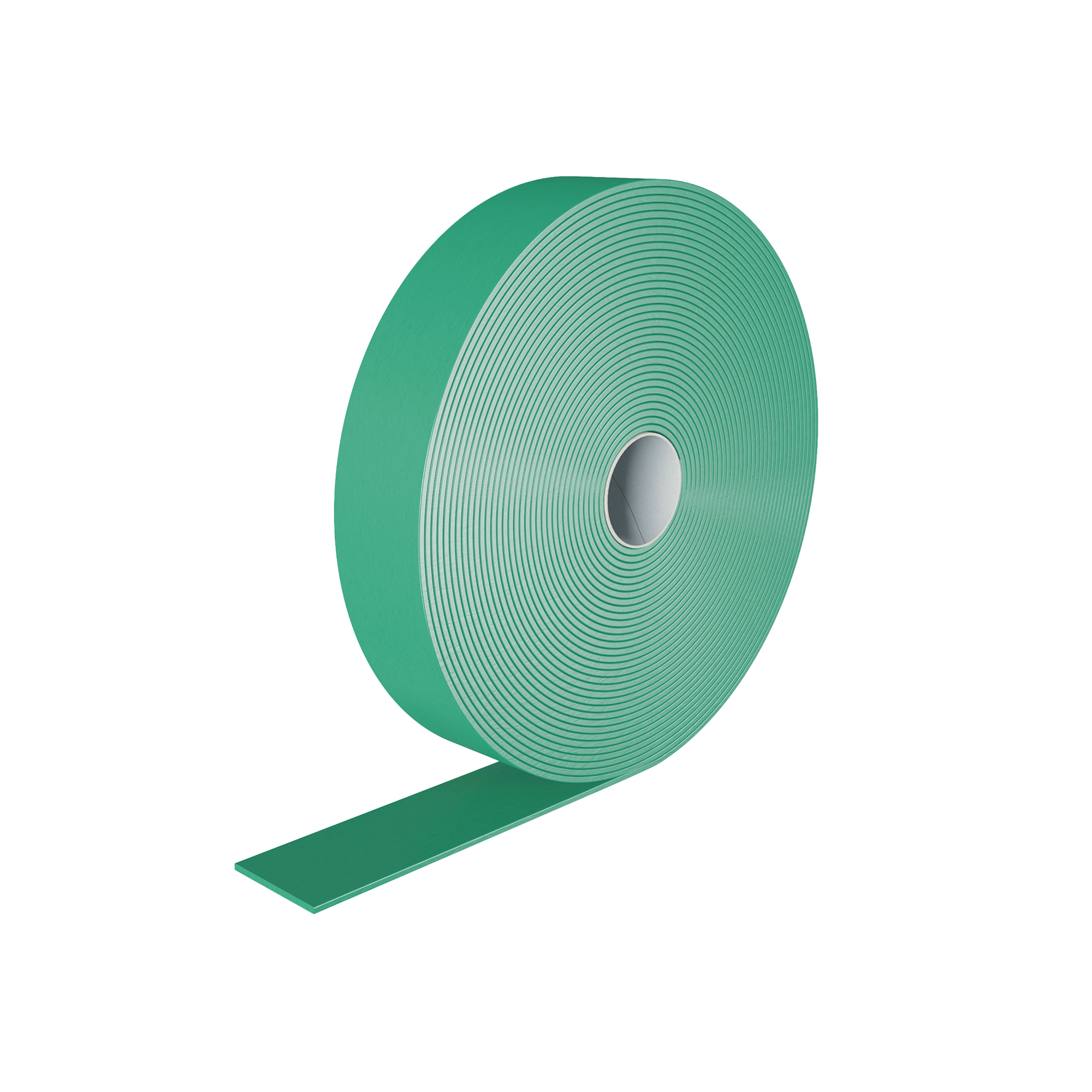

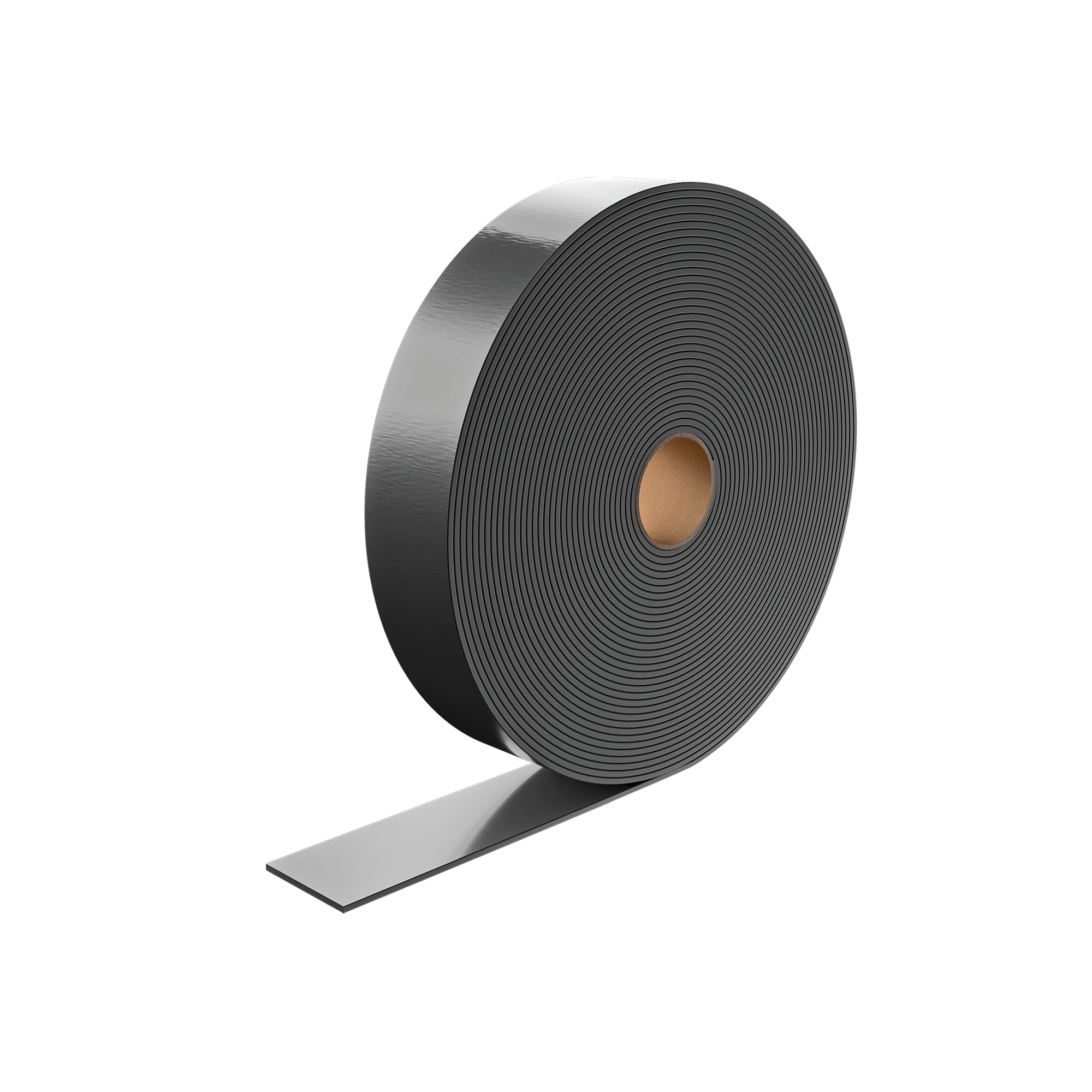

NAIL PLASTER and GEMINI,钉眼密封胶带

两种高附着力钉眼密封胶带的封闭分子聚乙烯结构确保了紧固系统形成的孔的不透水性。它们有5毫米厚,70毫米宽和双面胶版本,实现更安全的密封。

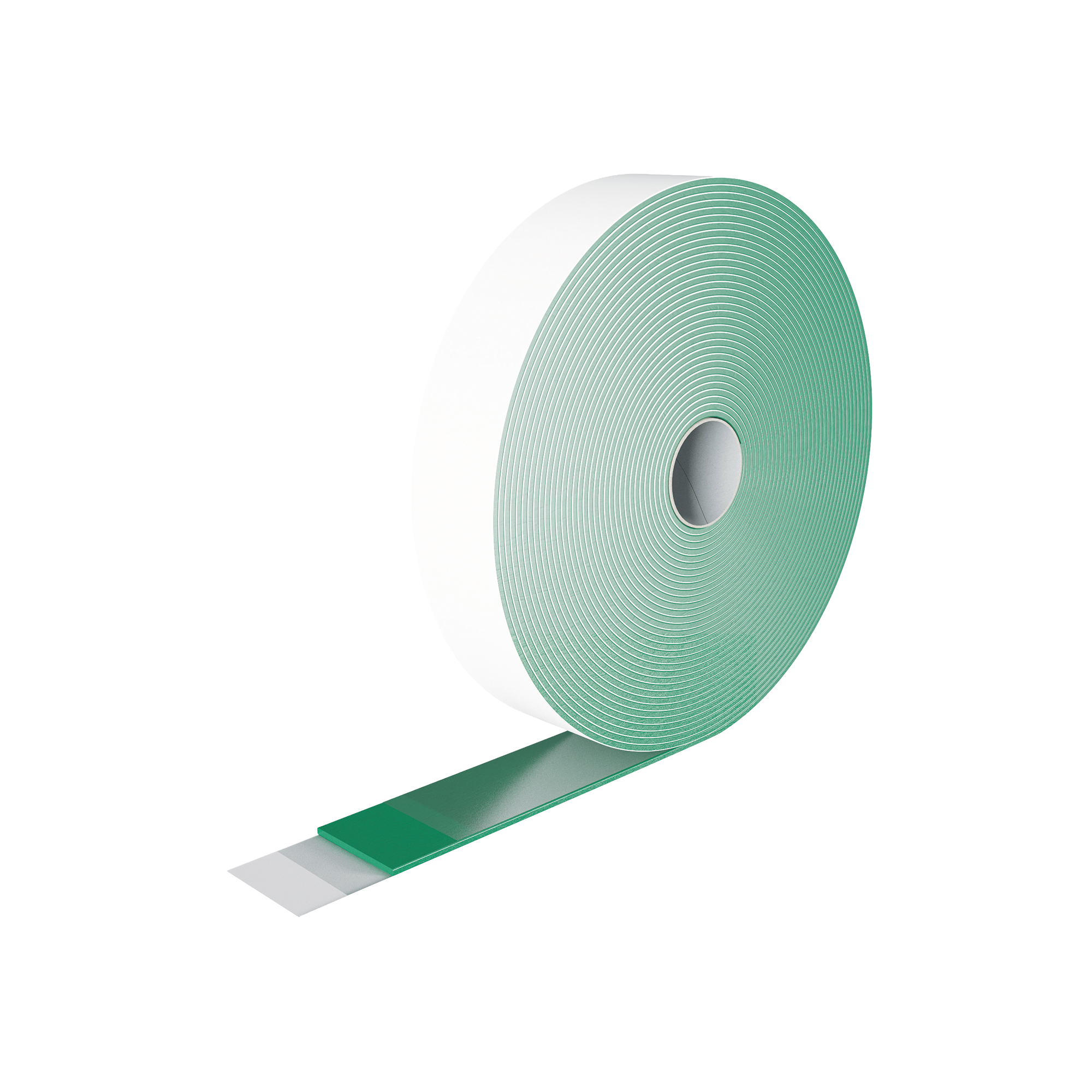

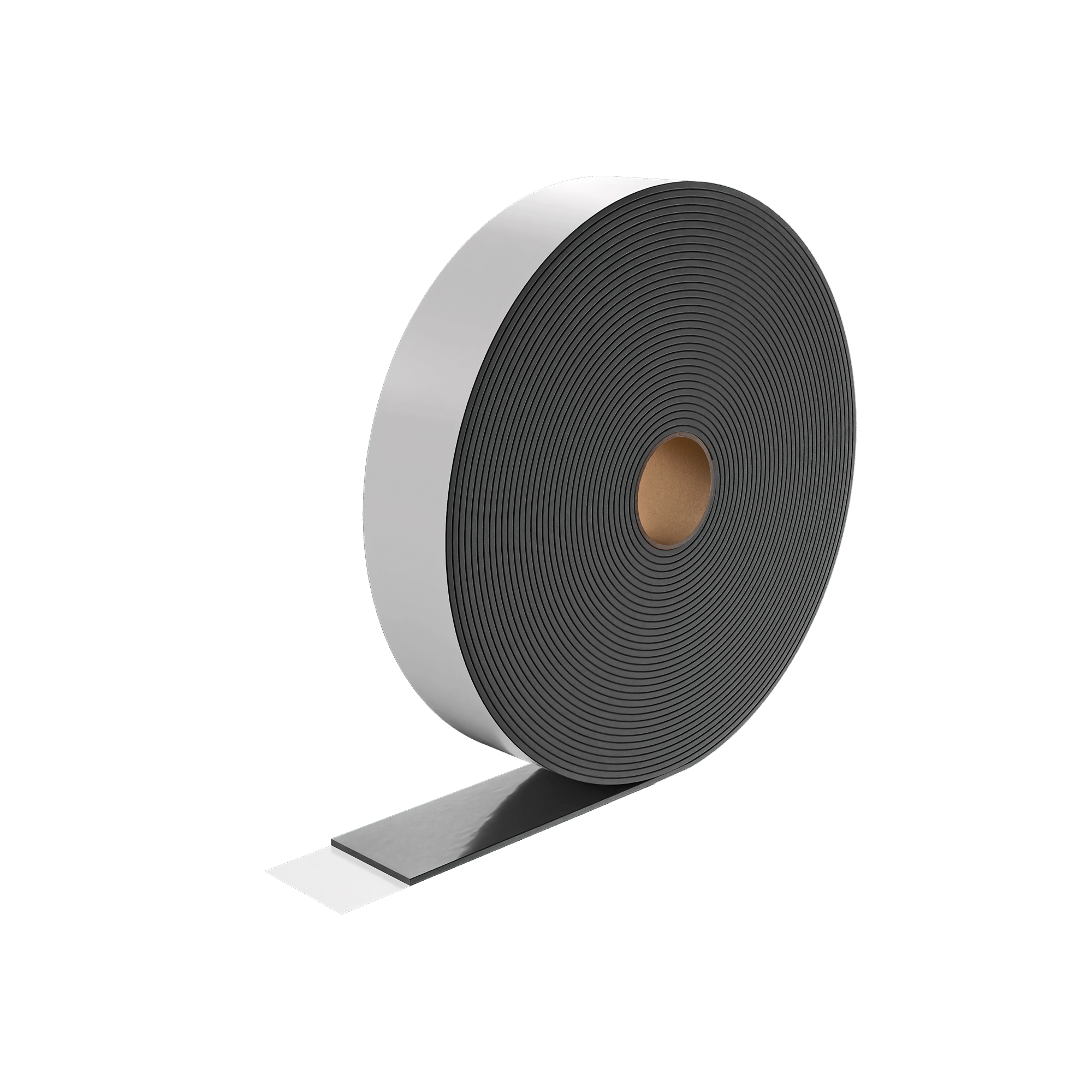

GEMINI版本提供双面粘附,并保证膜和挂瓦条之间的连续粘附,避免在钻孔点积水。借助LIZARD开卷机,安装简单快捷,直接在通风板条上完成。

文件

技术数据表

NAIL PLASTER

CODE B
[mm]
s
[mm]
L
[m]
B
[in]
s
[mil]
L
[ft]
pcs.
NAILPLA350 50 3 30 2 118 98 10
NAILPLA370 70 3 30 2.8 118 98 7
NAILPLA550 50 5 10 2 197 33 6

NAIL PLASTER

CODE B
[mm]
H
[mm]
s
[mm]
B
[in]
H
[in]
s
[mil]
pcs.
NAILPLA35050 50 50 3 2 2 118 6

GEMINI

CODE B
[mm]
s
[mm]
L
[m]
B
[in]
s
[mil]
L
[ft]
pcs.
GEMINI60 60 3 30 2.4 118 98 8
GEMINI80 80 3 30 3.1 118 98 6

Technical Data NAIL PLASTER

属性 标准 数值经过测试 USC 转换
Tensile strength EN 1939 material failure -
Solvents - no -
Thermal resistance - -30 / 80 °C -22 / 176 °F
Application temperature - ≥ 5 °C ≥ 41 °F
Storage temperature (1) - 5 / 25 °C 41 / 77 °F
1. Store the product in a cool, dry place for no more than 12 months.

Composition NAIL PLASTER

SUPPORT PE foam
GLUE synthetic rubber

Composition GEMINI

GLUE synthetic rubber
SUPPORT PE foam
GLUE synthetic rubber
RELEASE LINER silicone coated paper
