LBS EVO

New

文件

技术数据表
ICC-ES Evaluation report USA
ICC-ES Listing report CANADA
ETA Certificate
File CAD
File BIM.ifc
File BIM.rfa

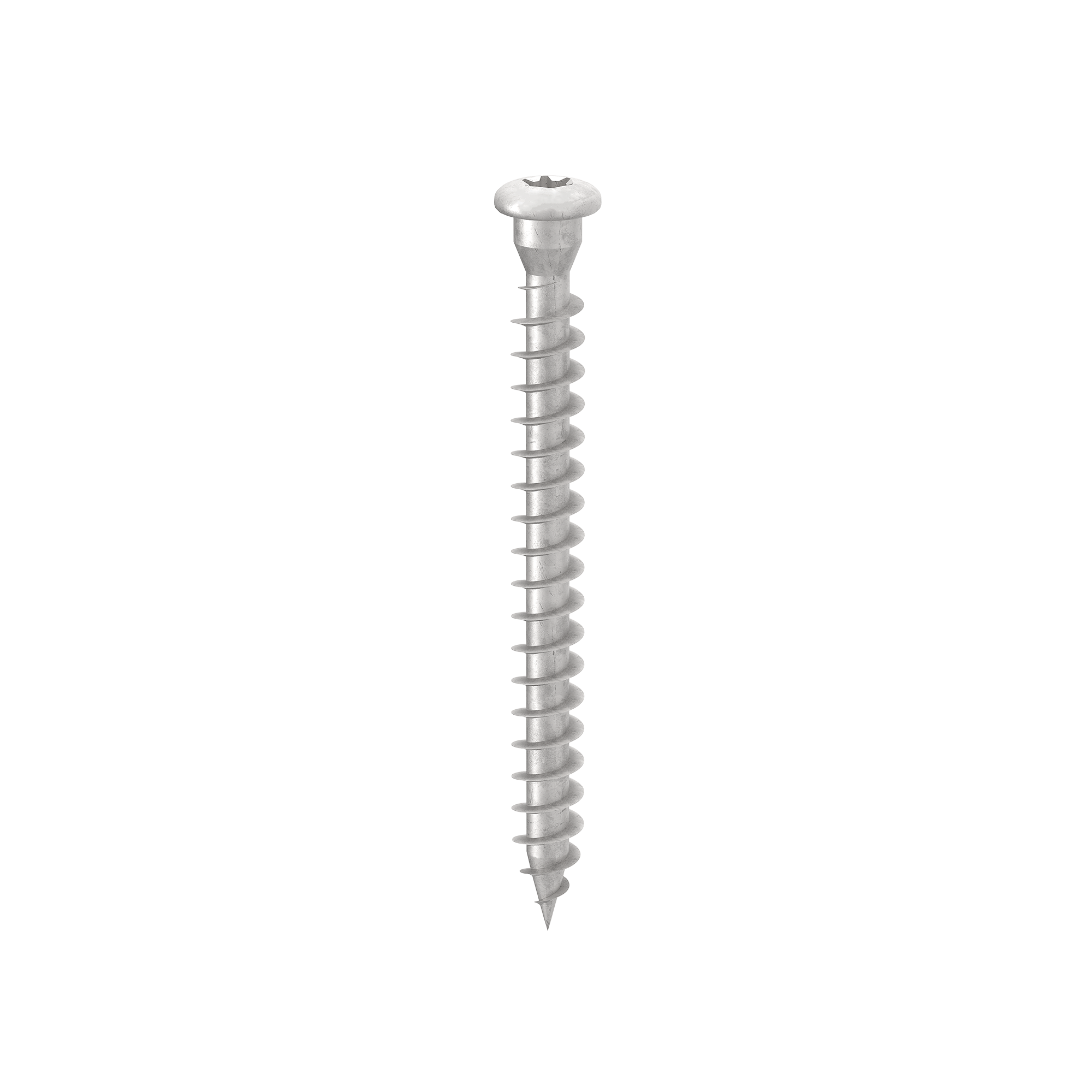

LBS EVO

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
LBSEVO540 - 5 40 36 0.2 1 9/16'' 1 7/16'' TX20 500
LBSEVO550 - 5 50 46 0.2 1 15/16'' 1 13/16'' TX20 200
LBSEVO560 - 5 60 56 0.2 2 3/8'' 2 3/16'' TX20 200
LBSEVO570 - 5 70 66 0.2 2 3/4'' 2 5/8'' TX20 200
LBSEVO780 - 7 80 75 0.28 3 1/8'' 2 15/16'' TX30 100
LBSEVO7100 - 7 100 95 0.28 4'' 3 3/4'' TX30 100
