HOOK EVO 2.0
特点
| Application | SINGLE POINT |
|---|---|

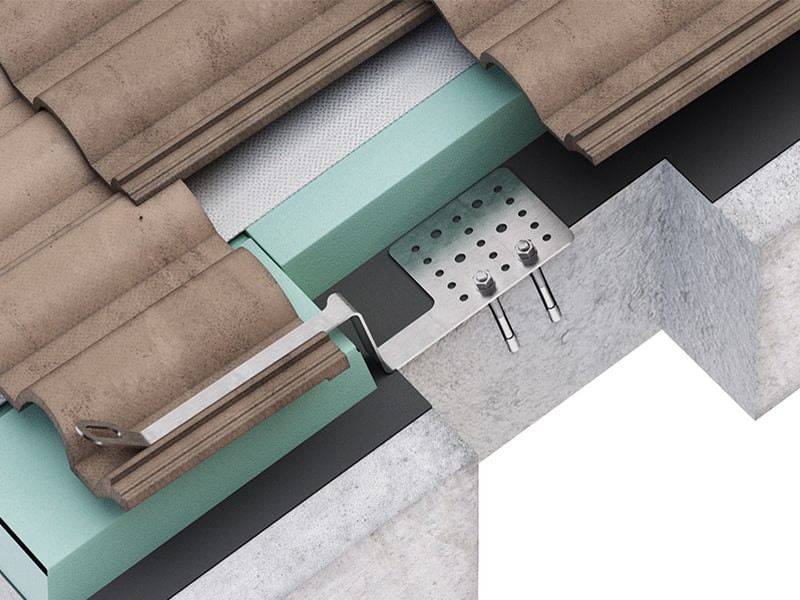

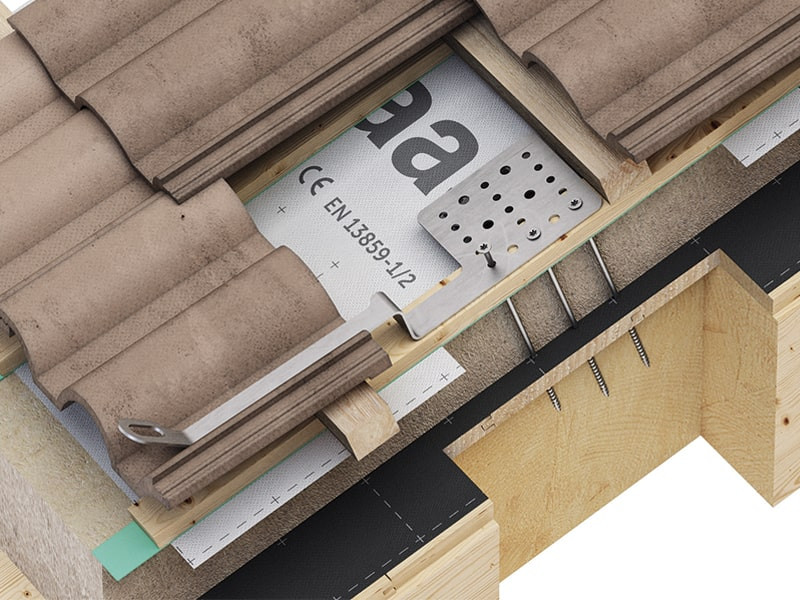

| Substructure | TIMBER, CONCRETE |
| Field of use | MIN. TIMBER STRUCTURE 80 X 100MM - MIN. CONCRETE STRUCTURE 120MM |
| Number of workers | 1 |
| Material | STAINLESS STEEL 1.4301 / AISI304 |
文件
技术数据表
|
|
|---|---|
符合性声明（DOC）
|
|
安全规程、安装和使用说明
|
|
符合性声明（DOC）
|
|
EAC certificate (anchor points)
|
操作规程
| 安装手册 |
|---|
HOOK EVO 2.0
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| HOOKEVO20 | AISI 304 stainless steel grade 1.4301 | 132 | 20 | 520 | 1 |
| HOOKEVO50 | AISI 304 stainless steel grade 1.4301 | 132 | 50 | 520 | 1 |
| HOOKEVO100 | AISI 304 stainless steel grade 1.4301 | 132 | 100 | 520 | 1 |
